Circuit opening relay indentification required. (solved)

Jim.

By Jim.
in Camry Club

 Share

Recommended Posts

Jim. Proficient

Jim.

Posted
Posted (edited)

I am trying to locate the fuel pump relay, otherwise known as the circuit opening relay. On another thread, the location was described cryptically as "above the passenger side kick board".

I have located four relays that fit that description. Can someone describe it for me a bit clearer. I will attach pictures of the one on the side of the inner car panel and the set of three that are mounted to the transverse 40mm diameter structural tube above the glove compartment.

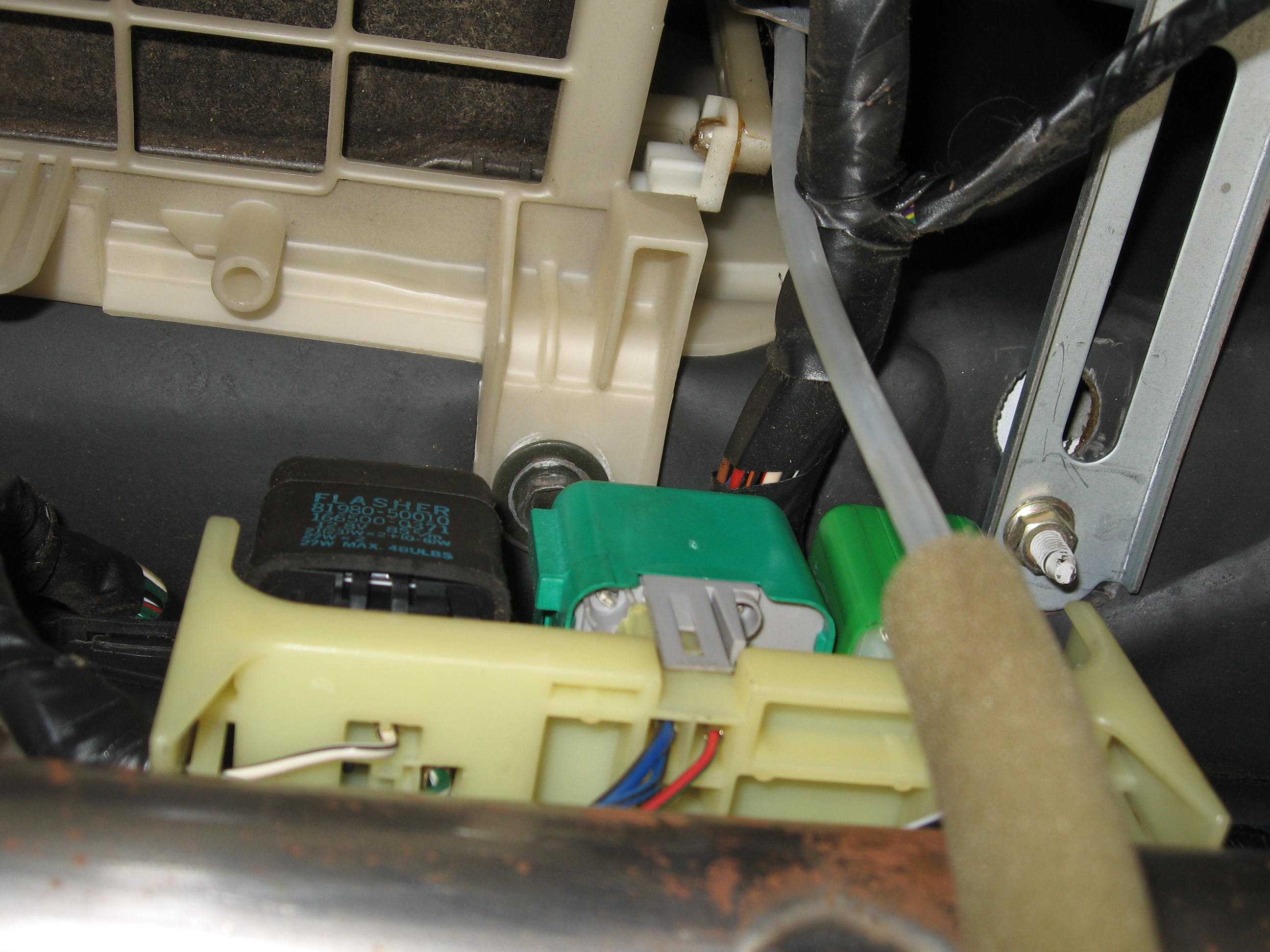

Set of three relays over glove box.JPG

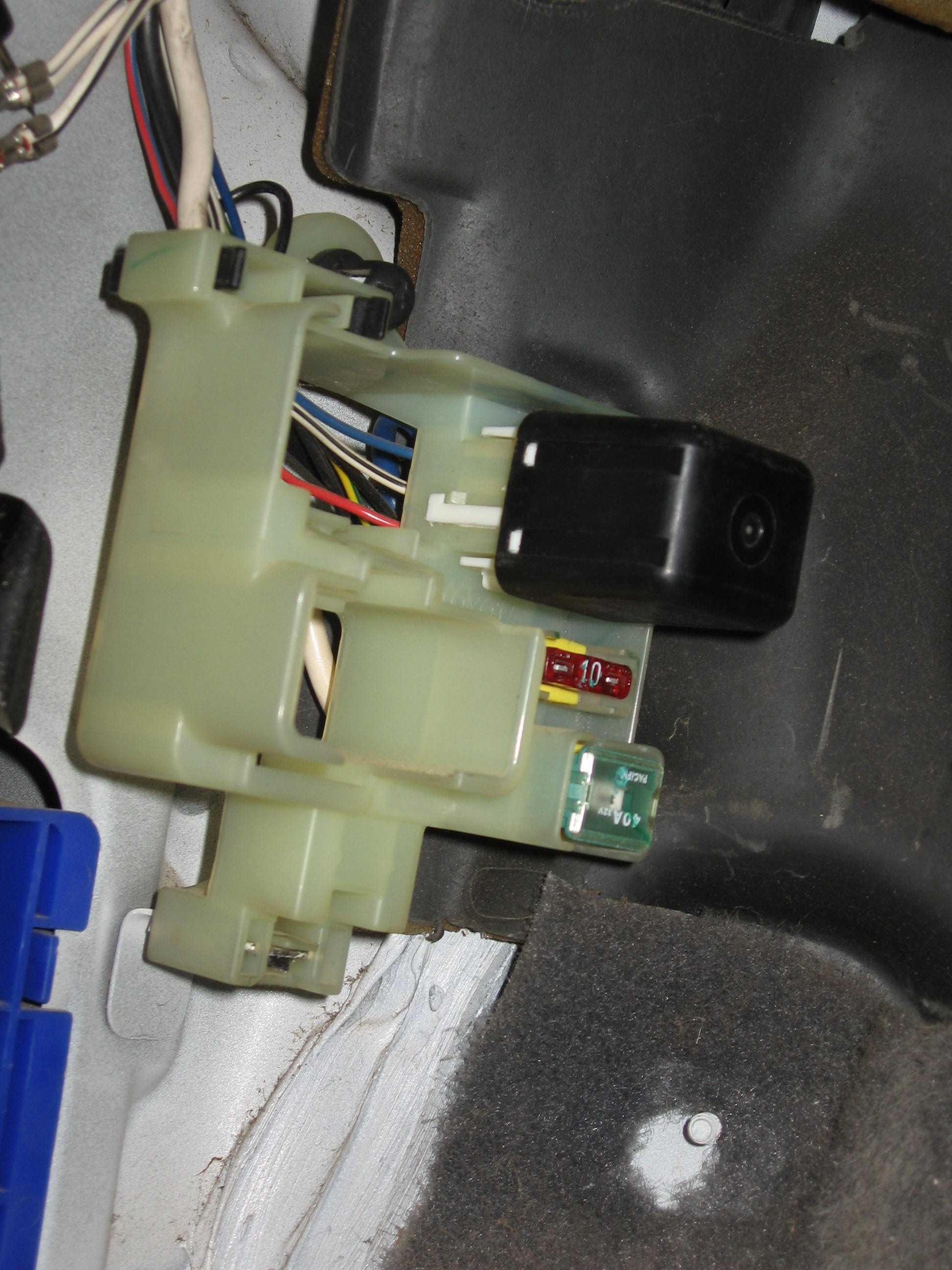

Fuel pump relay?.JPG

Edited by Jim.
Link to comment
Share on other sites
Jim. Proficient

Jim.

Posted
  • Author
Posted

Excellent! Thanks Trent. I will pull it out and check it.

One fellow on a youtube video suggests modifying it with an electrolytic capacity across the points to minimise arcing and subsequent likelyhood of failure.

Link to comment
Share on other sites

Jim. Proficient

Jim.

Posted
  • Author
Posted

Yes I don't want to replace it. I just want to know which one it is in the case of failure, which I have read about in my searching for recent unrelated problems.

Link to comment
Share on other sites
