Sequential LED blinkers + Switchback DRL Mod.

Recommended Posts

Got some time to sit down and mock this circuit up on the bread board today.

a quick test showed it was going to work. Pretty simple design using a 555 timer and 4017 decade counter.

Been really keen to get this set up and working for some time now.

Here it is on the breadboard. looked very promising.

Next was time to try it out on my new setup for the aurion

  • Like 2

Share this post


Link to post
Share on other sites


Looks hectik man !!!


Abiut time you got around to this mod

  • Like 1

Share this post


Link to post
Share on other sites

Where do I sign :)

Share this post


Link to post
Share on other sites

Cheers guys tyvm :D

Spent the day designing a PCB in Diptrace, I'll fabricate and populate the boards through the week , they sit size wise @ 60mm x 40mm so quiet small.

small enough to easily fit inside housings.


  • Like 2

Share this post


Link to post
Share on other sites

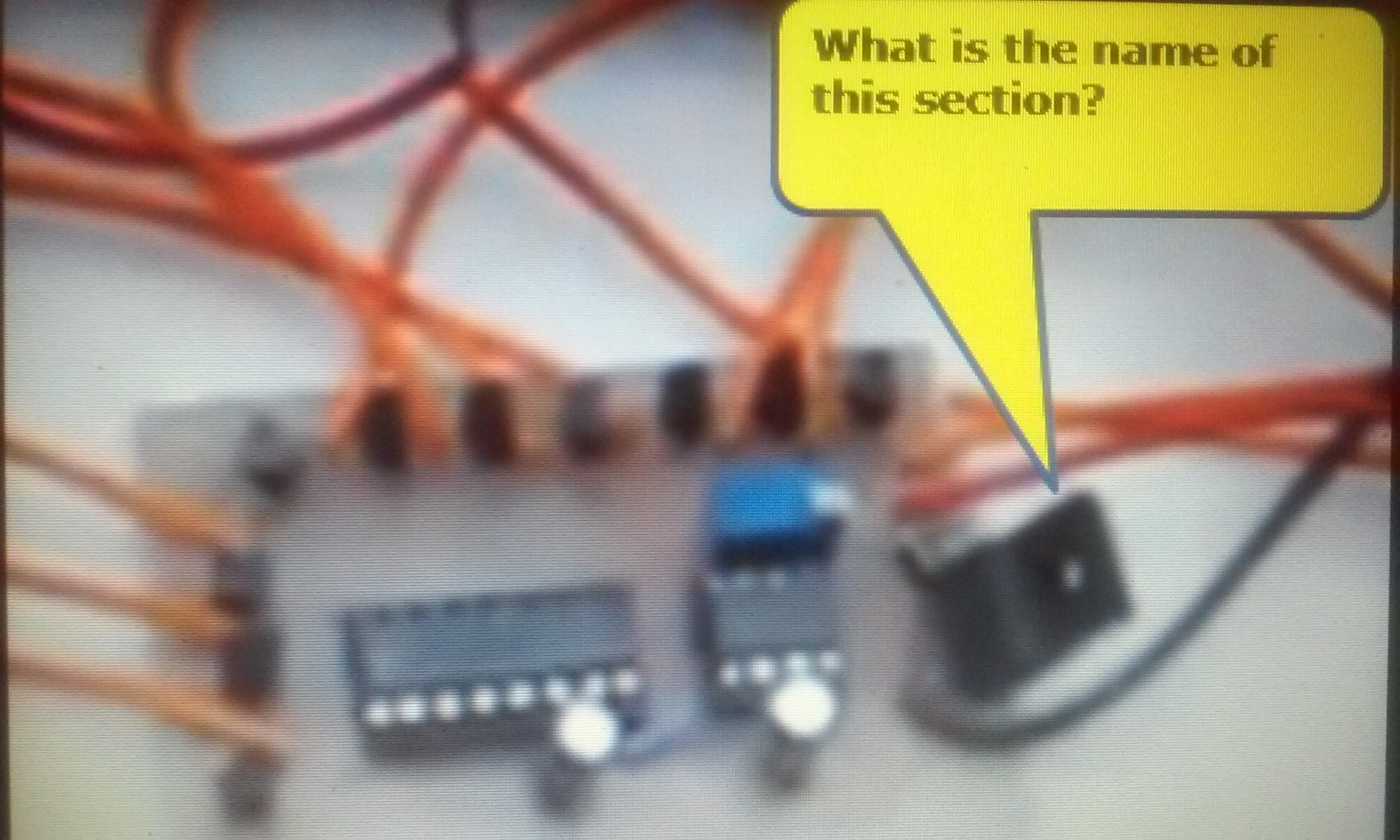

Well here they are. DIY printed and etched. Still gotta grab a small bit and drill them.

Not the best ive seen but good enough to populate :D


  • Like 1

Share this post


Link to post
Share on other sites

Prototype Boards needed a few minor tweeks, Will revise the layout reprint and etch and post up the final board.

But for now it's done. I should be able to reproduce them pretty quik now.

Next will be to add a switchback ciruit to the board to make a all in one unit.



uIHbr22gXyY

  • Like 2

Share this post


Link to post
Share on other sites

Show us how it looks on ur car mate.

Share this post


Link to post
Share on other sites

Show us how it looks on ur car mate.

I got bigger plans for these babys

Share this post


Link to post
Share on other sites

I was able to see the sequential LED blinkers up close and personal today. Bloody impressive !! :spiteful:

Share this post


Link to post
Share on other sites

Cheers mate ty :D got a good start on your tail lights today :D

Share this post


Link to post
Share on other sites

Oooooo indeed. My 7th gen celica awaits your glorious work ;)

Share this post


Link to post
Share on other sites

Impressive work. I lurk in the other forum & been admiring your other LED projects too. Wish I was that good with soldering electronics/ DIY fabricating & taking things apart!

Share this post


Link to post
Share on other sites

Cheers TF I really am enjoying all this atm :D

Share this post


Link to post
Share on other sites
On 08/09/2013 at 7:39 PM, Defyant said:

Cheers guys tyvm :D

Spent the day designing a PCB in Diptrace, I'll fabricate and populate the boards through the week , they sit size wise @ 60mm x 40mm so quiet small.

small enough to easily fit inside housings.


The parts list please...
