Hi there, I'm new and have made a search on my 2020 hilux speakers but nothing comes up.  Not sure if I'm doing it wrong.  Anyway Mr Google is unhelpful and even Toyota doesn't release this info to the public so thought I'd try here.

My 4 speakers have blown.  That means, I've checked the fuses and power to the speaker in the driver door panel and all good.  I'm going to assume all other wiring to the speakers will be good too but for now one door card off is enough.  The speaker is not ok and I've used a multimeter in accordance with Mr Google.  Tweeters are still working so can I assume the amplifier is ok?

I have priced Toyota replacement speakers but what is the specifications on them?  Toyota didn't know.

The price is $118 per speaker so I thought I'd look at what is available and perhaps better sound??  But if I don't know specifications I won't know if aftermarket speakers will blow the amp ans I can't find specs on the amp either.

Ideally I'd like to upgrade the speakers without upgrading the amp.  Does anyone have any info to share on this?



Posted

Hi Michelle,

You don't need Toyota speakers, just go to Jaycar or look online for car speakers. About $70 per set of two. They are usually 4 ohms, but 8 ohms would be OK. Size is the other criteria you need. The diameter across the cone.

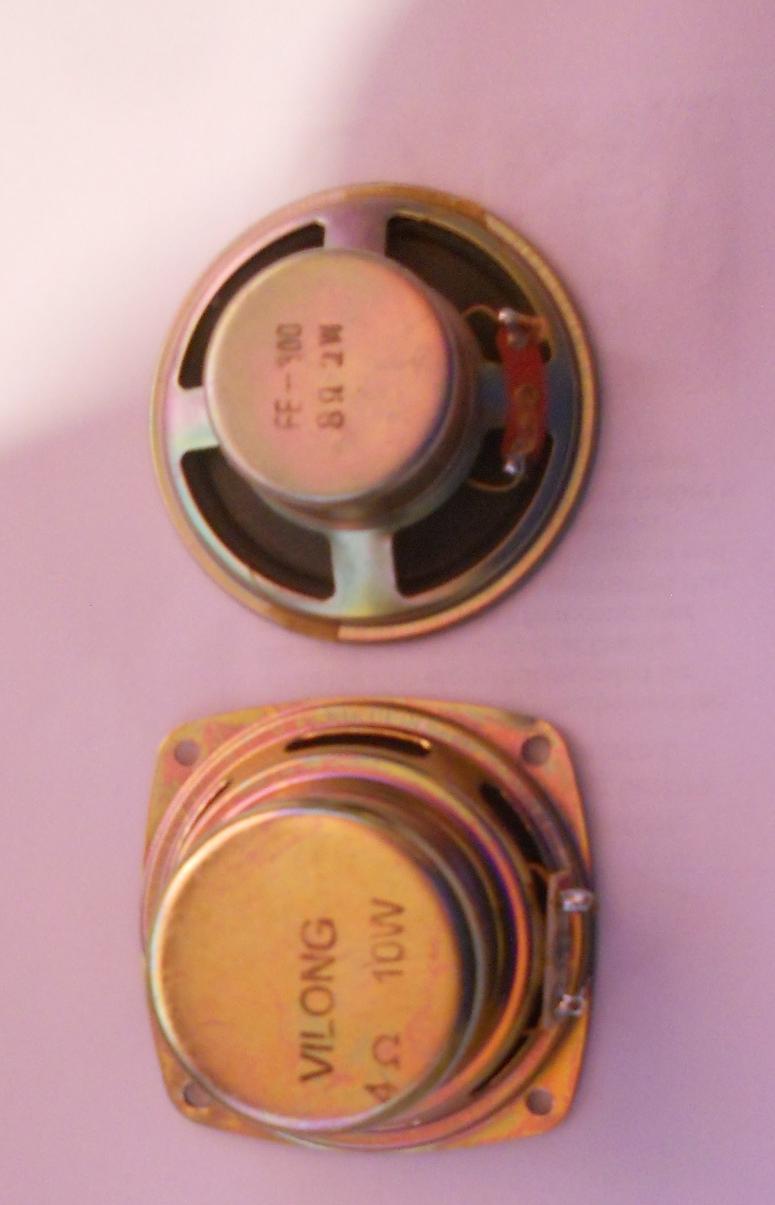

Can you remove one of the existing speakers and look on the back? They usually have their spec (ohms and watts) printed on it. See attached photo.



Herb


Posted (edited)

Hi Herb

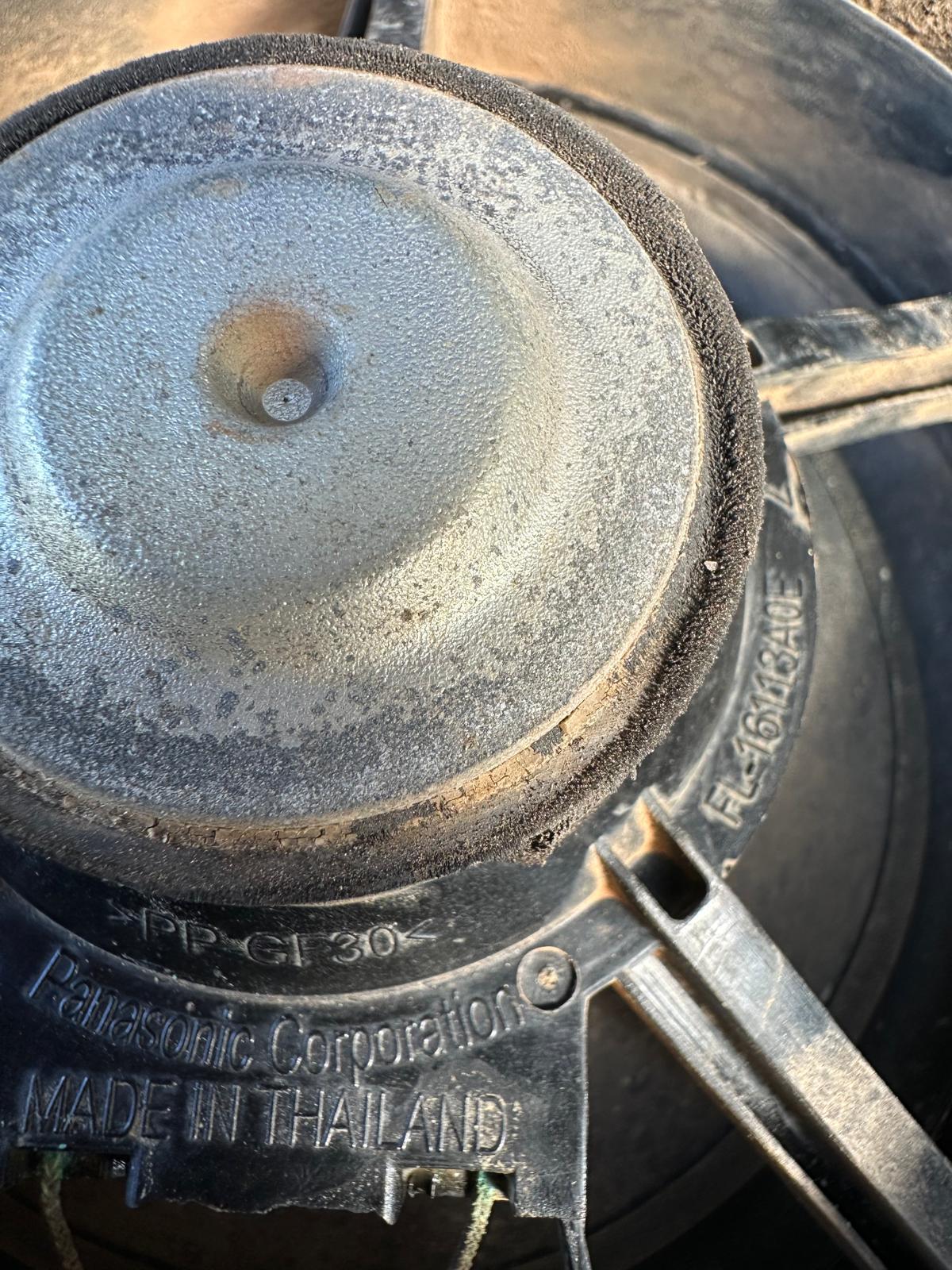

I've taken out 2 and both are badly corroded.  I do know they are 6.5 inches.  AI chat suggests that replacement kits are 4 ohms so the AI suggested 4 ohms is the impedance.  I'm not sure how the watts affects things, perhaps the amplifier might blow if the watts are to high, back to google I guess.  Another consideration with aftermarket is they need adapters and spacers which is all about fitting them into the space in the door.

It's a lot to pay if they blow again or don't sound as good.

WhatsApp Image 2025-05-17 at 1.27.10 PM.jpeg



Edited by Mish33
Add pictures
Posted

Hi again, Michelle,

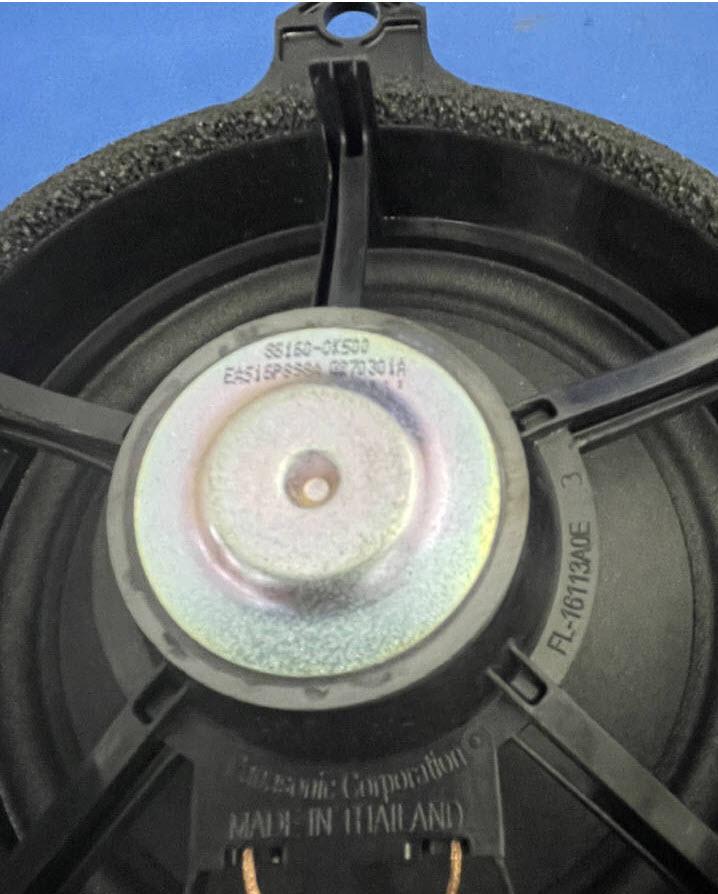

I did a search and found Toyota speakers, for another model and they were 4 ohms and 17.5 watts.

The watts rating won't damage the amplifier, but the amplifier may blow an under rated speaker.

If you have a multimeter, that can measure very low ohms, you could try measuring the old speakers, as the nominal rating is close to the resistance.



Herb

Posted

Hey Herb,

I haven't managed to locate the amplifier, it isn't where Google said it was.  The plugs seem to be  taped over but there didn't look like much room for it anyway.  I looked under the head unit behind the dash.

I do have a multimeter that was my father-in-laws so it's very old and doesn't have ohms lol.  Might be time for a new one.

Try again tomorrow :)


Posted

Hi Michelle,

The head unit usually has the amplifier built in. Only top end or custom systems have separate amps.

You can get reasonable multimeters for a few dollars, but they will be useless troubleshooting the car's electrics, with the engine running, ignition interference.



Herb
