Hey guys,

Just dropping in to share my new ST185 Celica GT4.

The details of the car are as follows.

Engine : Toyota 3S-GTE series 2, 2ltr

Arias forged pistons

Turbo: Garrett GT35R

Exhaust : custom banana bunch tunes length manifold, 3” dump pipe, 2.5” mandrel bend system

Brass button clutch with T.R.D pressure plate

Blow off valve with custom sping( 28psi)

PWR front mount intercooler with 3” stainless steel piping

Mounted inlet manifold

Malory cross fire CDI

Microtech LT-10s computer

ACL race series bearings

Pouter x beam rods

Hks 290 degree cams

HKS air filter

Fidanza adjustable cam gears

Gen III buckets n schims

800cc sard injectors

Custom fuel rail (20 ltr alloy fuel cell, turbosmart pressure regulator, Sard 800ccside feed injectors)

Custom sump

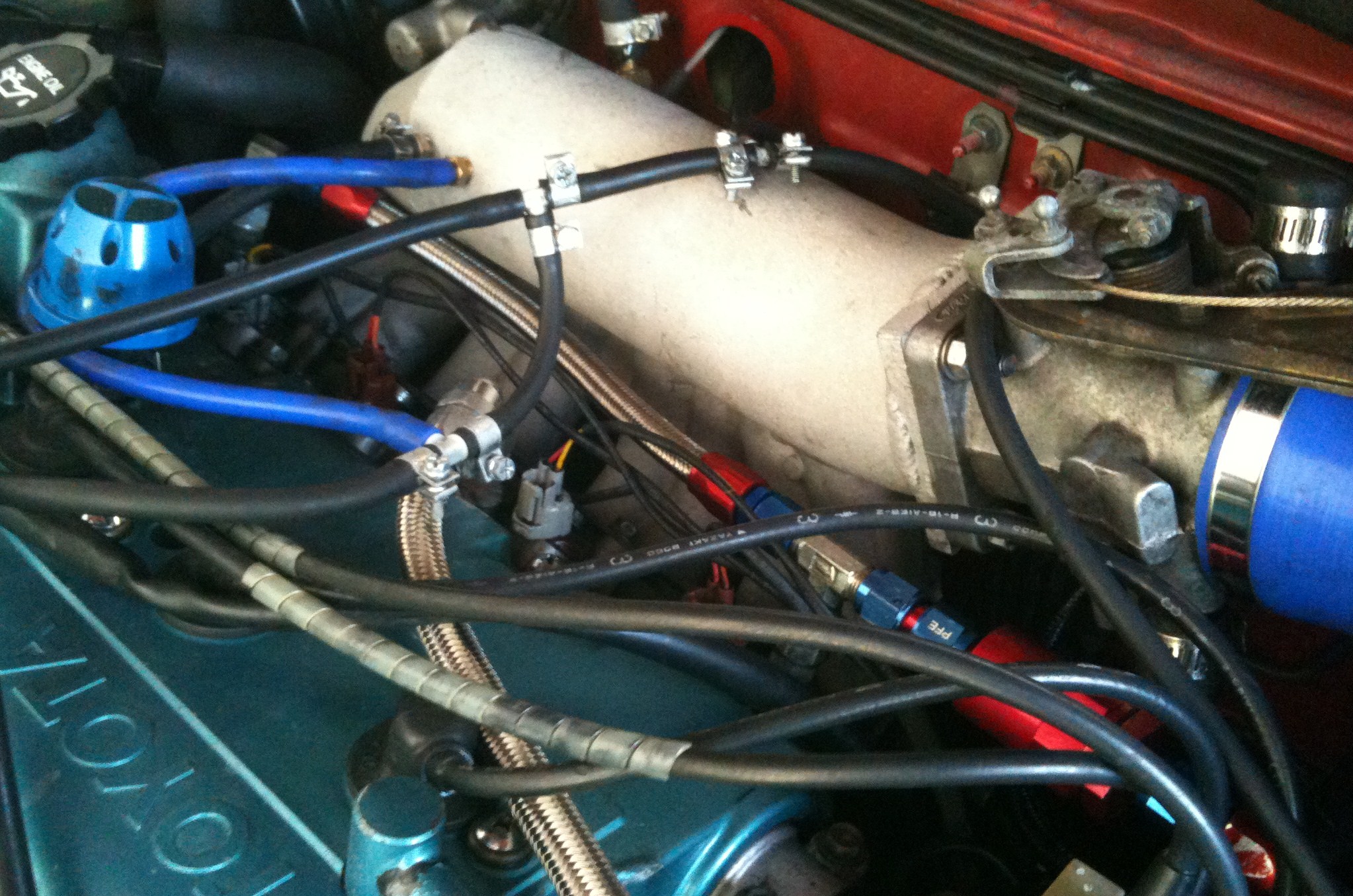

Custom inlet manifold and runners

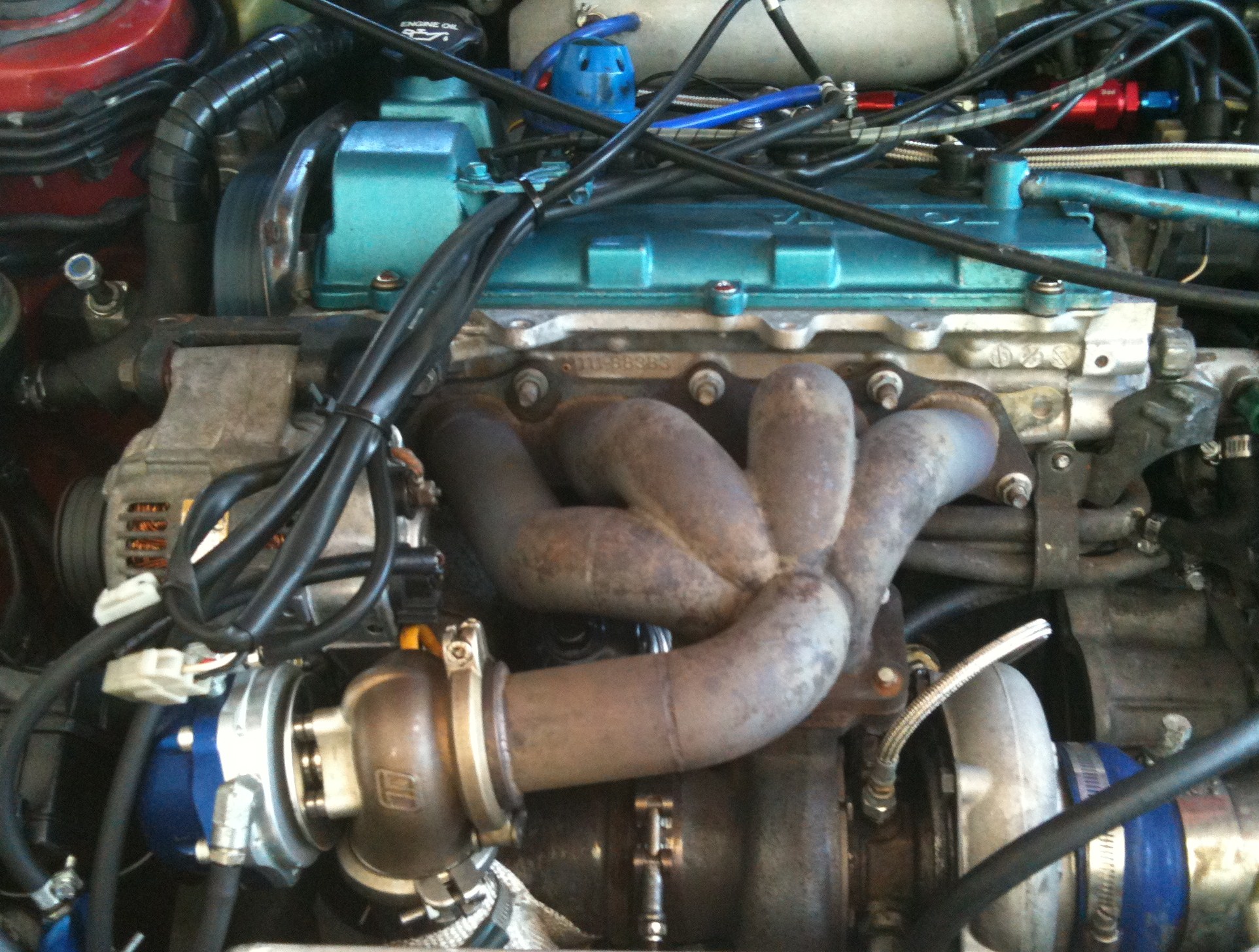

Custom tuned length exhaust manifold

Turbosmart 50m pro gate

Turbosmart fuel regulater

KYB hard shocks

Wheels and Tyres : 17” lenzo wheels with 235 frontera soft race new tyres.

Stewart Warner race series shift light with digital tachometer

Drift series Oil Temp, oil pressure, water temp, air/fuel ratio gauges

Autometer carbon series boost gauge.

the car runs a microthech lt - 10s computer and hand controller mounted in glove box.

see the car on track http://www.fullboost.com.au/video.php?id=494&startRow=90&endRow=100&page=10

Let me know what you guys think.

post-24167-0-19381400-1304144938_thumb.j

post-24167-0-57158300-1304144976_thumb.j

post-24167-0-73753800-1304145012_thumb.j

post-24167-0-83563600-1304145045_thumb.j
Brocalus Contributor

Brocalus

Posted
Posted

Looks good mate, I don't really like red on a car but its just my opinion. The rest of it looks good, the one thing I saw you don't have was coilovers, not interested or no more money :P

Gianni01 Contributor

Gianni01

Posted
  • Author
Posted

it was a drag car and i bought it how it is, so theres no brake or suspension upgrades. reds not my favorite colour, id prefer gun metal but its still good lol.

Brocalus Contributor

Brocalus

Posted
Posted

Gun metal on GT4's are mint, upgrade ur suspension and brakes then it'll be complete. =)


Gianni01 Contributor

Gianni01

Posted
  • Author
Posted

Gun metal on GT4's are mint, upgrade ur suspension and brakes then it'll be complete. =)

what brakes and coilovers should i up grade to any suggestions? are the stock brakes any good?

(Cars not on road yet that why im asking, should be on road by the end of the week :)
