I'm fitting some aftermarket revesing sensors on a 2008 corolla hatch. Have Toyota provided a plug to pick up the reversing light battery or do you have to tee off of the lamp wiring.

Posted
I'm fitting some aftermarket revesing sensors on a 2008 corolla hatch. Have Toyota provided a plug to pick up the reversing light battery or do you have to tee off of the lamp wiring.

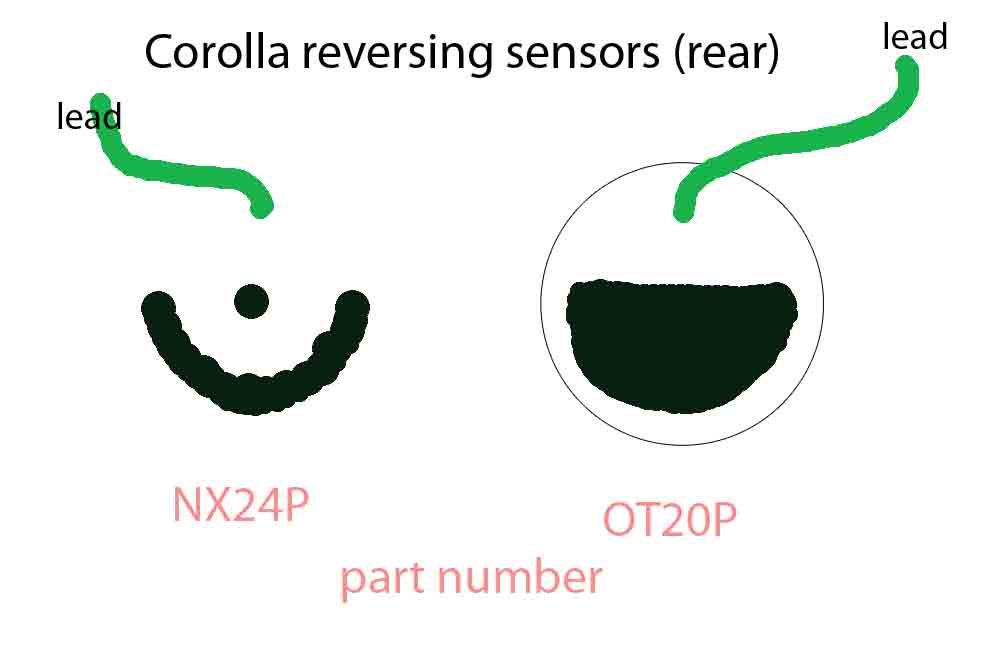

I've decided to go genuine (cheap off ebay) as they are better quality. Has anyone fitted genuine sensors as there are 2 different pairs in the kit, one pair for centre position (15 degrees) and the outer two sensors (7 degrees), but it doesn't indicate which is which. They have different patterns on their rears (shown)


Anyone got any ideas? The next corolla I see with 'em I'll crawl underneath and look.

Posted

The flatter ones go in the middle and the angled ones go on the outer sides...

Make sure when you fit them into the bumper bar the arrow faces to the top or they won't work correctly...

The installation manual will tell you everything you need to know...

After drilling the bumper bar (22mm holes), use a circular file and clean the edges of the hole of the sensors won't sit flush with the bar...

Also keep in mind that drilling or filing any bigger than 22mm will **** the bumper so be very careful...
