Reverse Camera on my new Head Unit


Peter Yeh

Recommended Posts

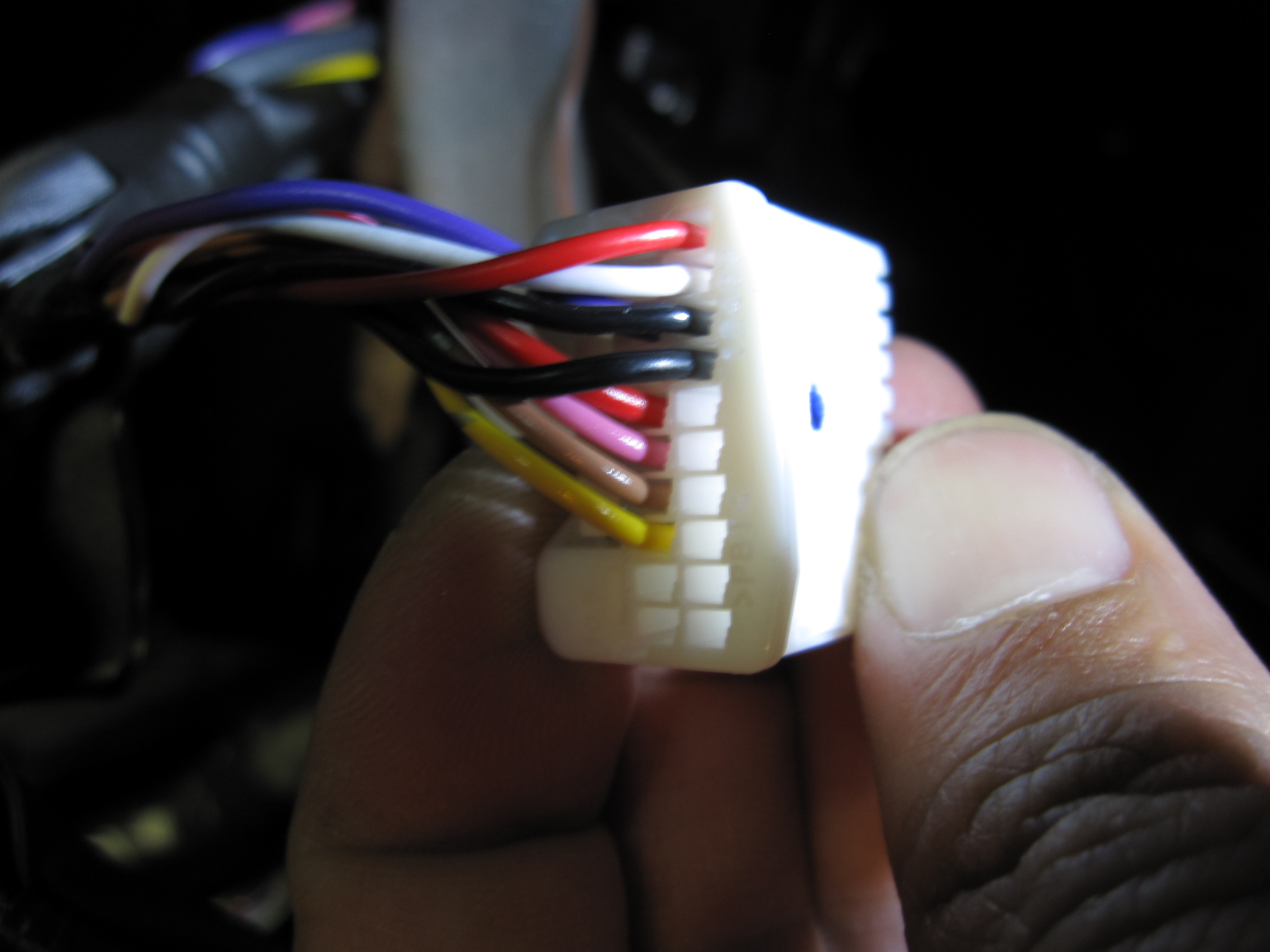

Hello, I'm getting a new head unit for my ZR6 (face lift model) this new model came with reverse Cam and I plan to install by myself, I looked at those cable in my car, the problem I'm having is I don't know which pins output for my reverse Cam, does anyone knows the pin layout? I have attached photo for the cable plug.
