Posted (edited)

hi all. need a wiring diagram of the stock headunit plug/harness for a 04 sportivo

i have looked and searched and came up with the the diagram below

BUT following that diagram caused everything to go funny. not working right. it plays but seems like the right front speaker isnt right. when i turn on the parkers/lights, headunit stops playing. no sound. amplifer doesnt power on either. so im thinking the diagram below isnt correct. did some googling and found another diagram which is a little different. tackled this late arvo so didnt have time to fix it and try the other as it was getting dark.

can someone provide me with a diagram they used that worked 100% on the stivo. Thanks

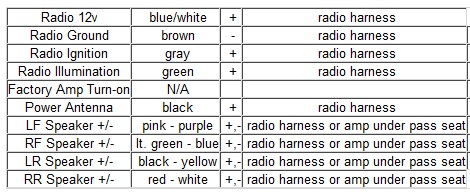

ONE I USED >>>>


ONE I JUST FOUND AND WILL USE TOMORROW >


Edited by hAmZ
Posted

problem solvered.

12v - blue/white

Ground - brown

ignition- gray

illumination- LIGHT GREEN!

LF +/- : pink, purple

RF +/- : DARKER GREEN!!, blue

LR +/- : black, yellow

RR +/- : red, white
