Require assistance.

Have Land Cruiser 2010 200 series V8 Diesel VX model. Had it fitted with a factory GPS on purchase and was given the Fugitsu Ten Radio/CD. The Model is PZQ60 60050. It has three connector Pin Outs. Don't know what the first two are for. I managed to buy a connector with color coded wire tails for the Centre Connector Pin Out but I don't know what the coding is.

Questions:-

1) Can somebody who knows please tell me where I can source Pin Out details for the unit model.

2) Can some advise if the second Pin Out is for an Ipod. If not what is it for.

3) What is the first Pin Out is for, I suspect it is for data files and Bluetooth phone connection

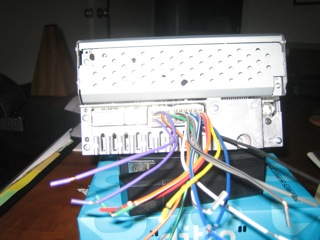

Please see two pics below.

Thanks

VinceC
