2001 camry charging

Nurul_Anwar

By Nurul_Anwar
in Camry Club

 Share

Recommended Posts

Nurul_Anwar Advancing

Nurul_Anwar

Posted
Posted

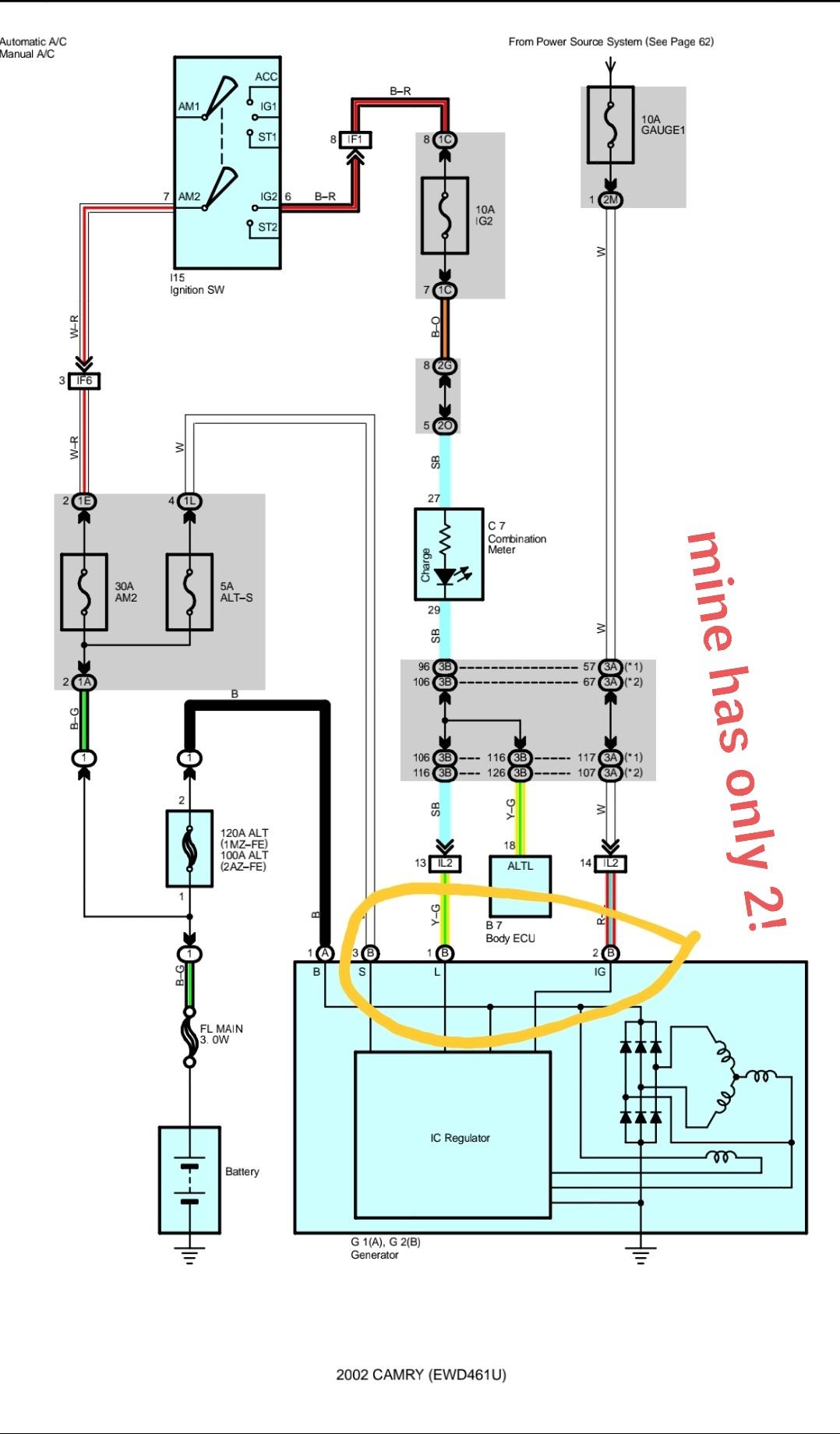

Hi, I have a 2002 camry advantage (SXV20R 5S-FE). I was looking for the charing wiring diagram for this car and found an app (carmin). It's a good resource I think (lots of makes and models). According to carmins diagram, my car alternator should have 1 thik cable that goes to battery (+) post and 3 thin cable (3 pin connector) for controling the output and dash indicator. But looking under the bonnet, the alternator has only has 2 thin (2pin connector) and 1 thik cable to battery. I am so confused.  Does anyone has the wiring diagram for a 2 pin alternator charging system? I would appreciate the help. Thanks
