Warning Lights on Digital Dash

KamikazeKirk

By KamikazeKirk
in Supra Club

 Share

Recommended Posts

KamikazeKirk Enthusiast

KamikazeKirk

Posted
Posted

I have a 1989 2lt Twin Turbo with the digital dash. It just got hammerd with some heavy rain. and now there is wat looks to b a warning light... im guessing its something to do with the rear of the car

RA35GT Collaborator

RA35GT

Posted
Posted (edited)

Hey dood which light are you talking about?

The small orange car with the rear lights on?

If so, thats to warn you that you have a broken taillight or brake light.

Edited by RA35GT
RA35GT Collaborator

RA35GT

Posted
Posted

I don't know mate. But it may indicate the same fault as the icon.

(They seem to duplicate other warning lights on that bit, like the door open warning light and the round bars on the side and the ESC light and brake rotors etc).


  • 3 months later...
  • 1 year later...
aloshan Enthusiast

aloshan

Posted
Posted

Hi

You have the 1ggte i assume?

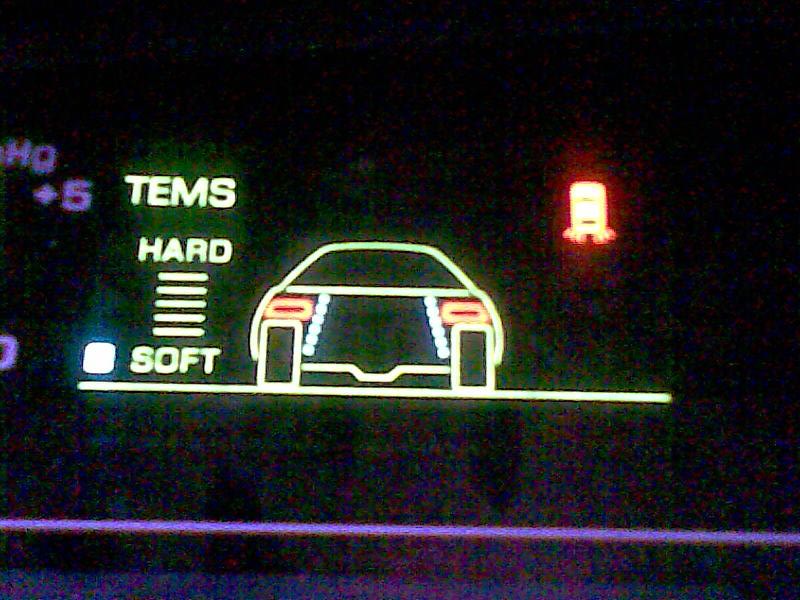

Anyway it seems to be the TEMS (Toyota Electronic Modulated Suspension) light.

KamikazeKirk Enthusiast

KamikazeKirk

Posted
  • Author
Posted

Hi

You have the 1ggte i assume?

Anyway it seems to be the TEMS (Toyota Electronic Modulated Suspension) light.

yea i do... oh .. that sounds like it could be right.. never thought of it before.. i have replaced the suspension... couldnt afford the toyota ones... just go ordinary ones...

aloshan Enthusiast

aloshan

Posted
Posted (edited)

Hi

You have the 1ggte i assume?

Anyway it seems to be the TEMS (Toyota Electronic Modulated Suspension) light.

yea i do... oh .. that sounds like it could be right.. never thought of it before.. i have replaced the suspension... couldnt afford the toyota ones... just go ordinary ones...

yes tems was a cool feature in the 80's , isnt really noticable unless you put in brand new shocks since the car is that old. you have to use tems compatible shocks though (like Tokico illuminas)not worth the effort in my opinion unless you track your car. check if your tems button in the centre console is pressed down and if you hear a click coming from the rear of the car.its likely you have replaced suspension parts that are not tems compatible leading to malfunctions with the system.

Edited by aloshan
