Factory amplifier

noah_73

By noah_73
in Aurion / TRD Aurion Club

 Share

Recommended Posts

noah_73 Progessing

noah_73

Posted
Posted

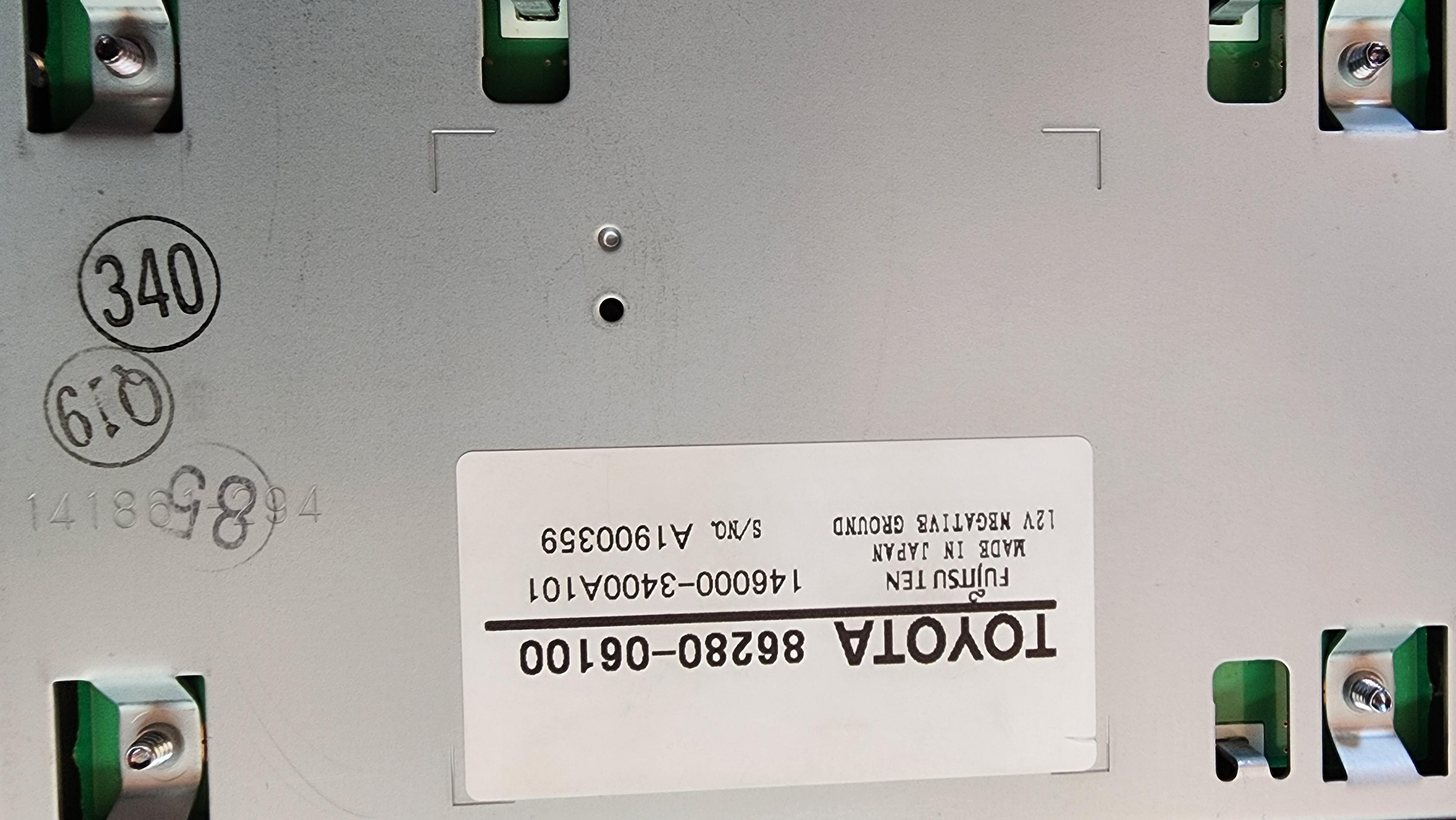

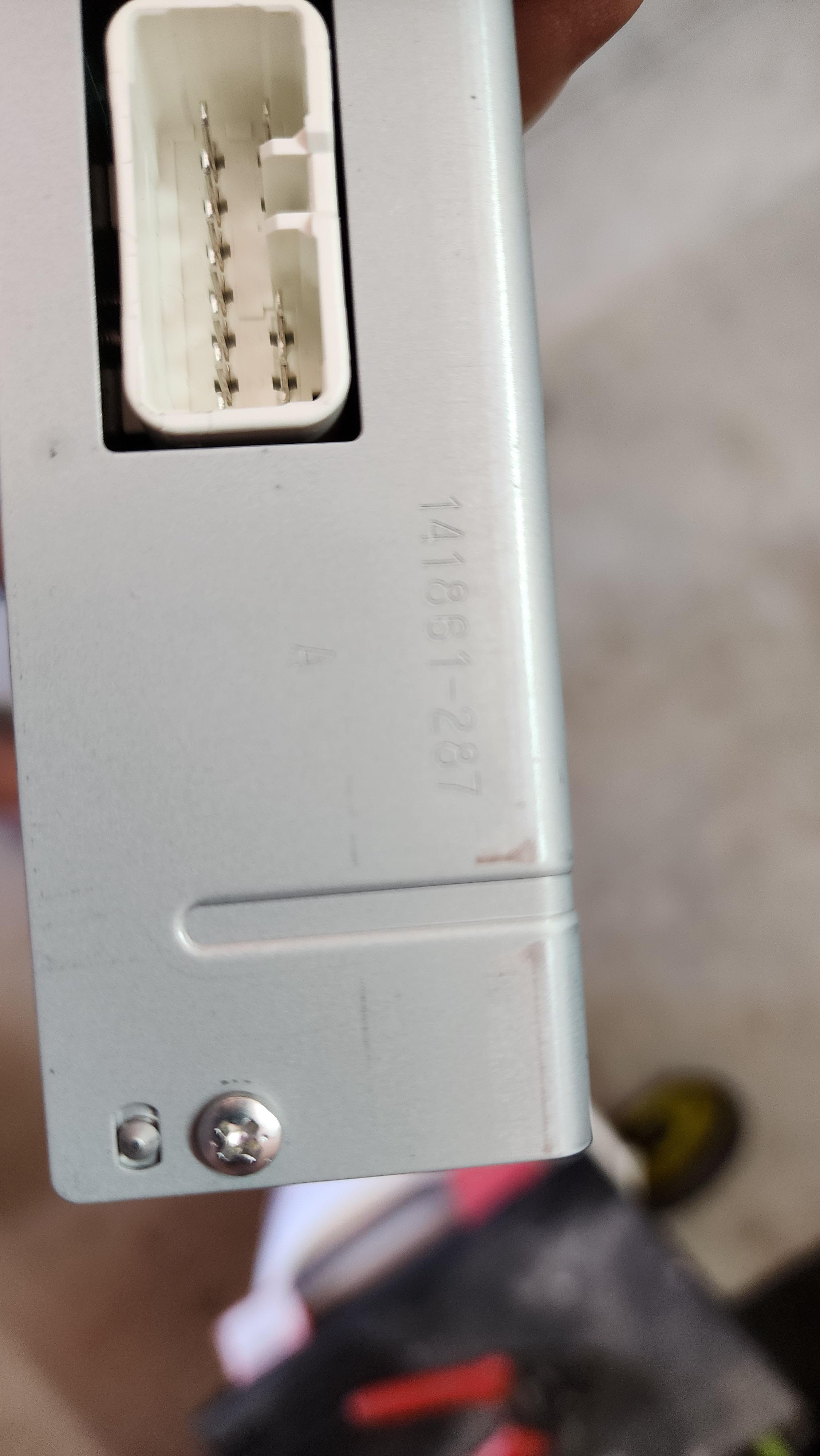

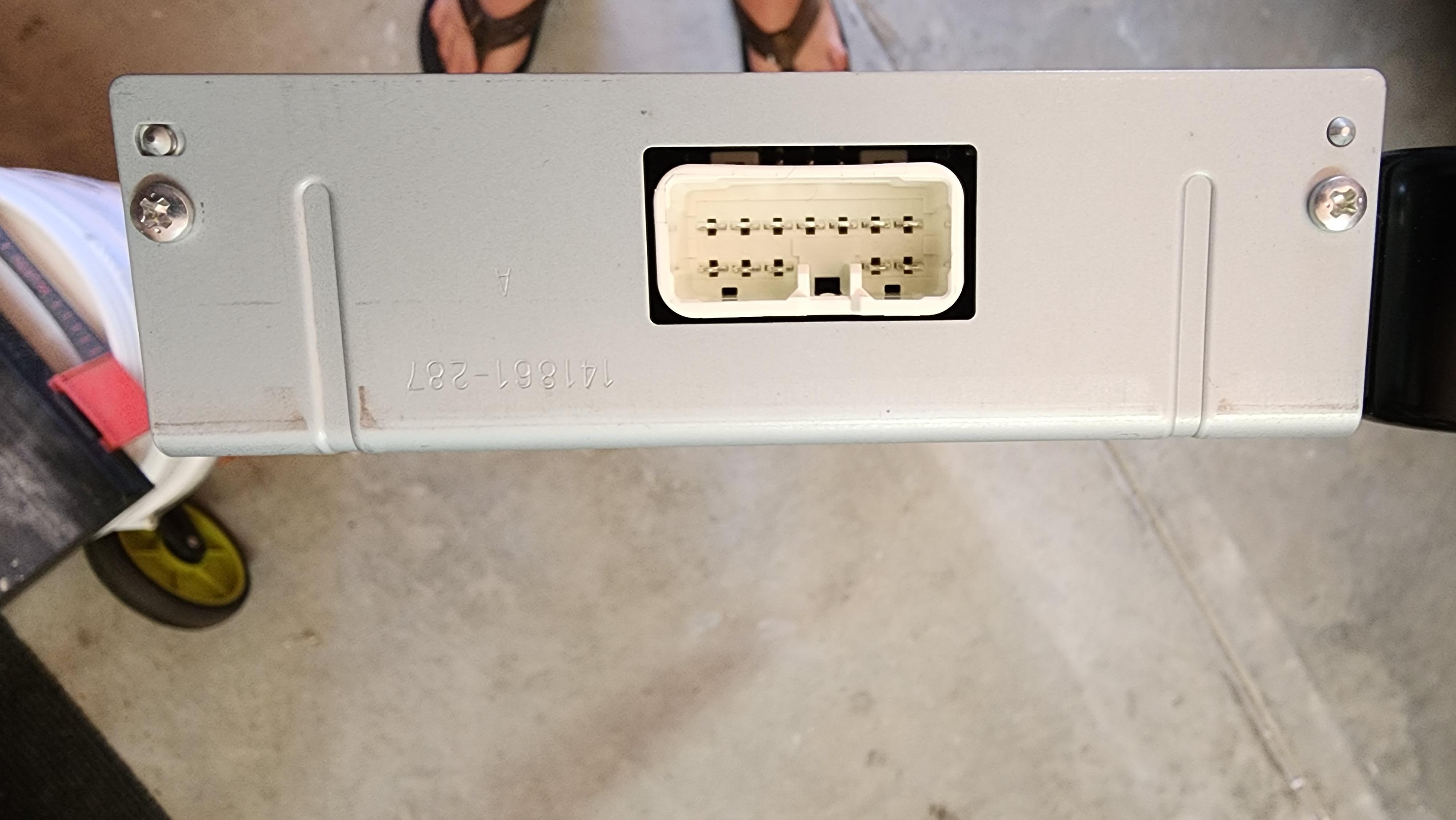

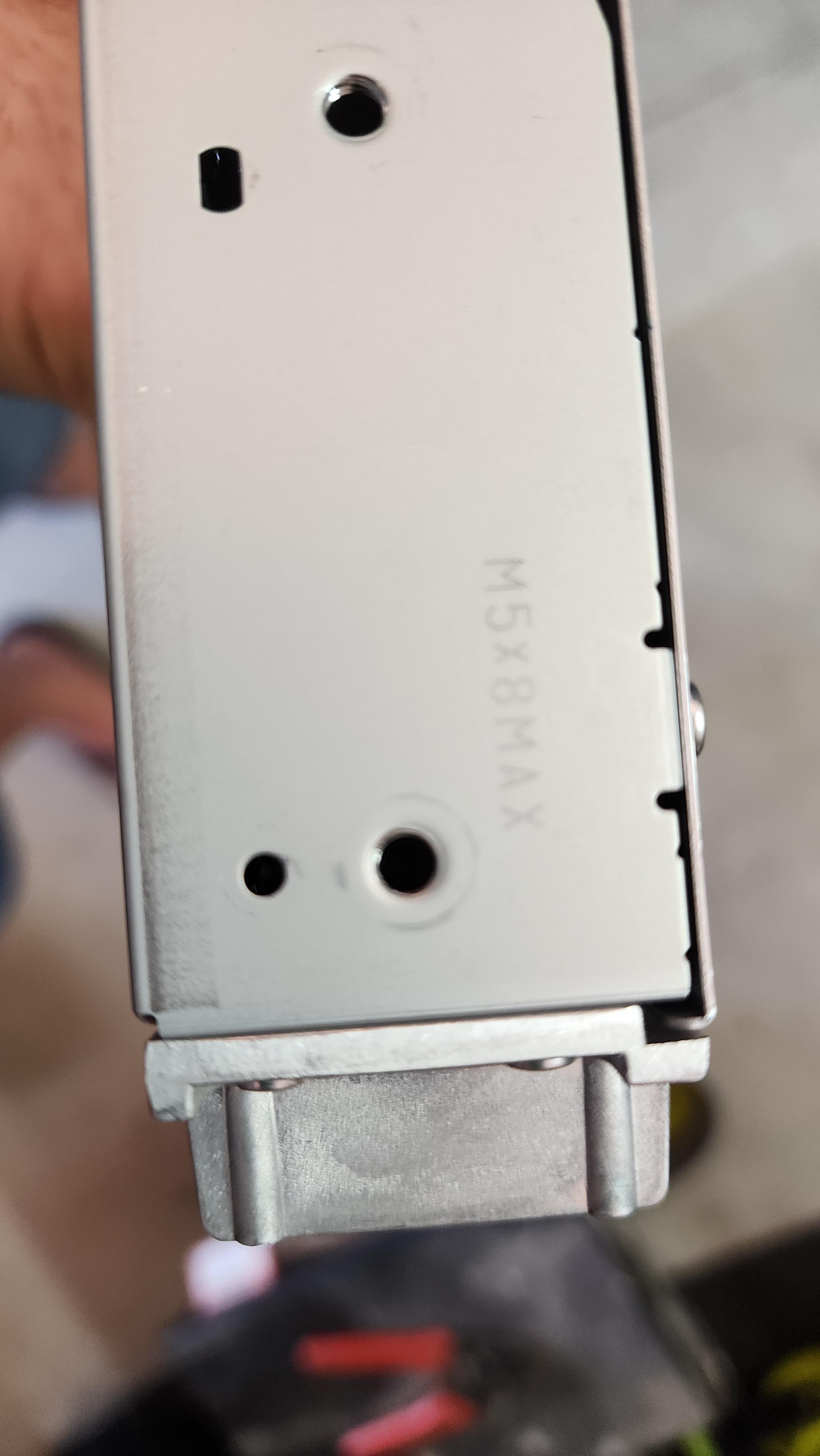

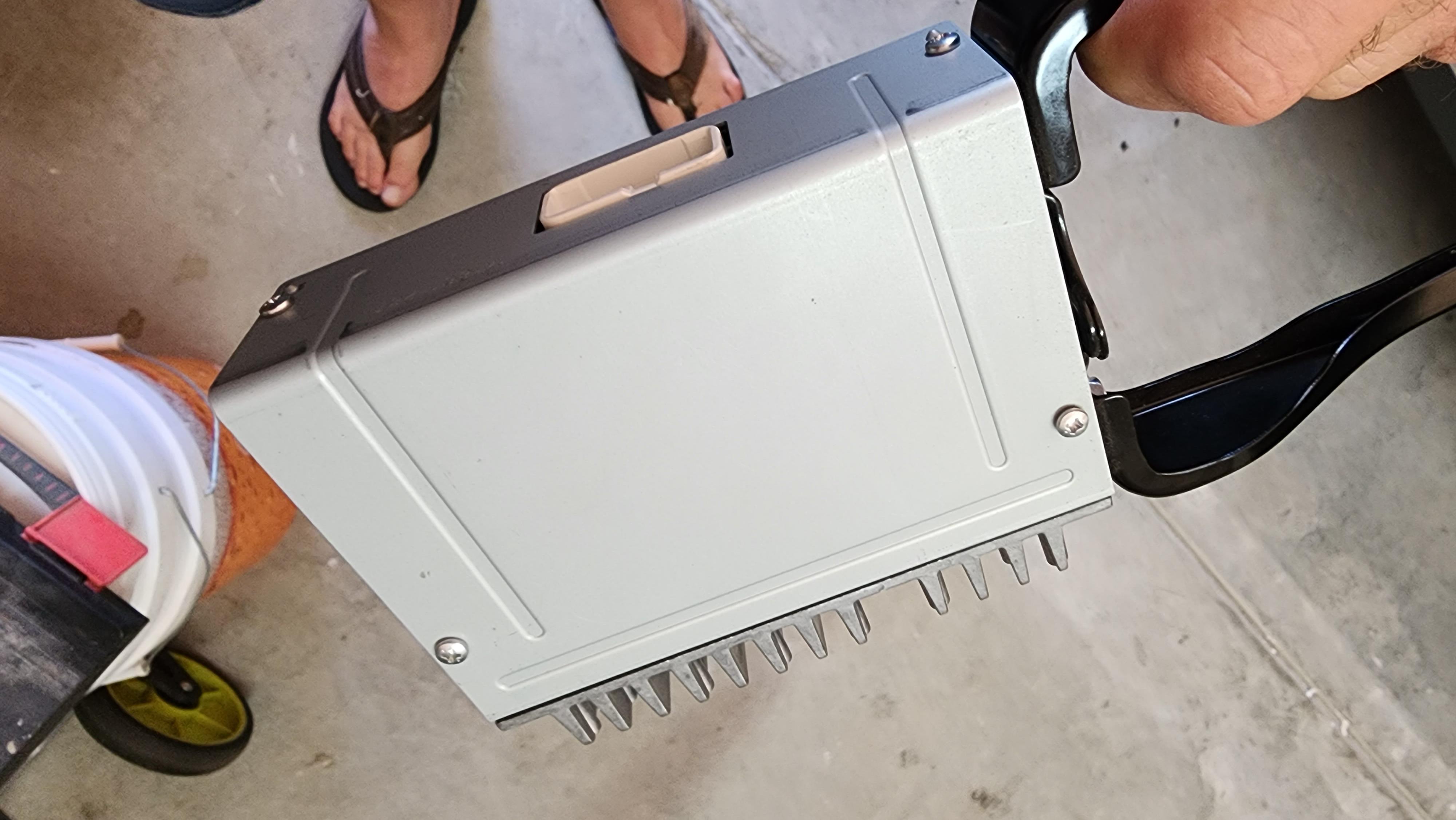

My MY10 Presara has a factory amplifier under the drivers seat (see attached photos), does anyone have a pin out diagram for these. The internet has close to nothing on nothing.

I've installed Pioneer TS-A6960F 6 x 9's and they sound awful, I'm trying to get to the bottom of why.






Link to comment
Share on other sites
noah_73 Progessing

noah_73

Posted
  • Author
Posted

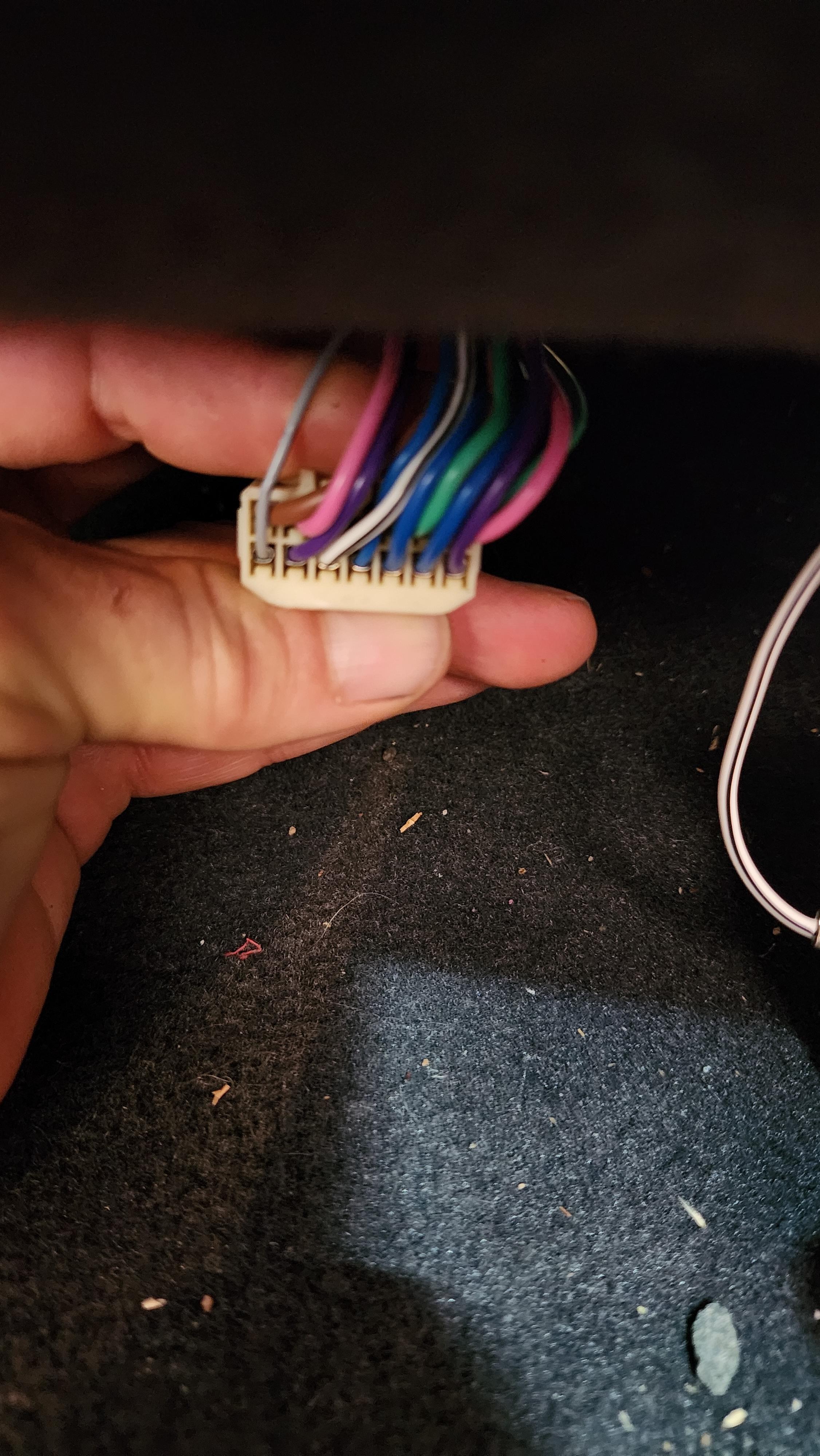

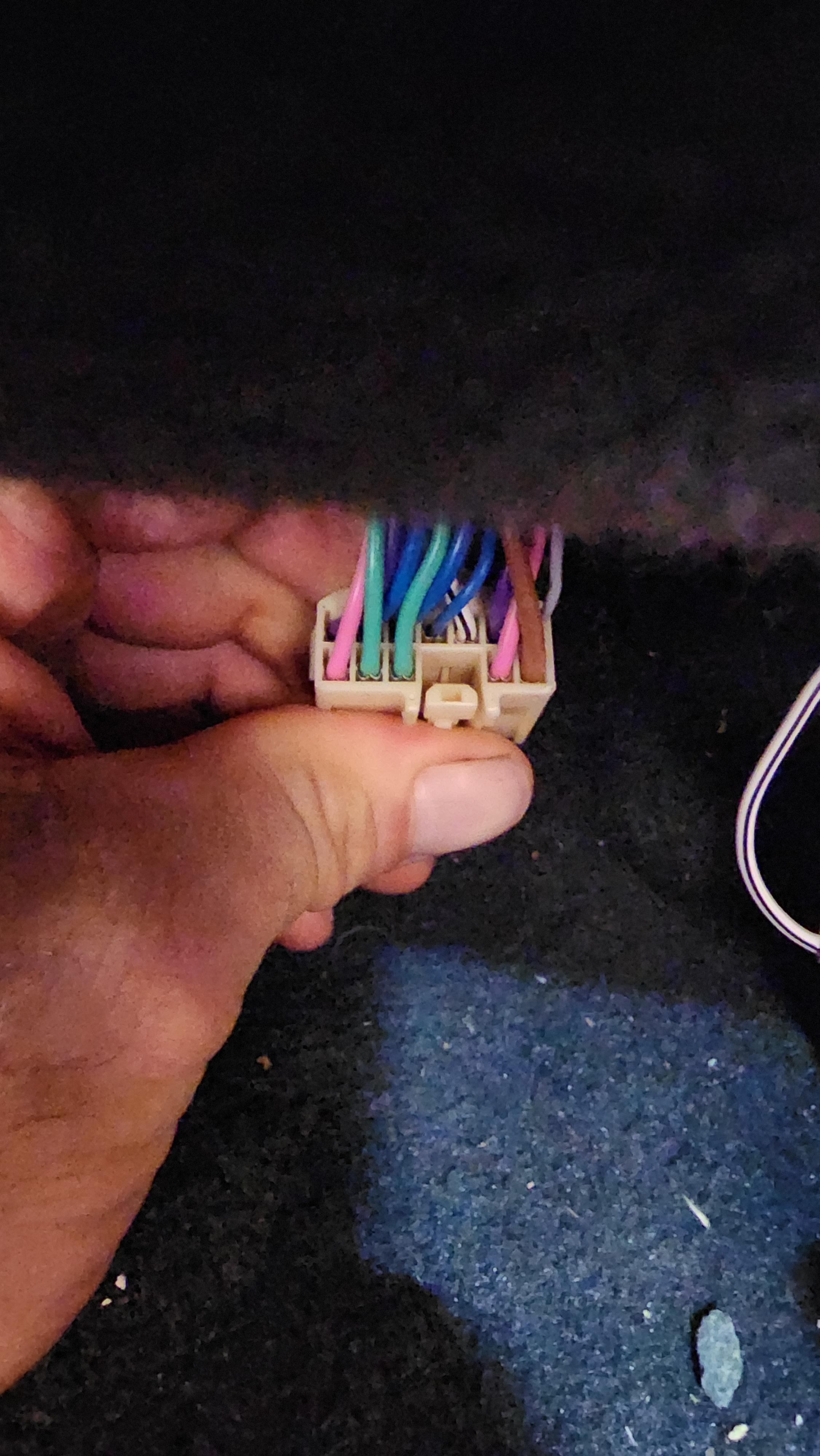

This is the plug that goes to it, so far I've worked that front door speakers are wired up to that amplifier but rears aren't. No idea about the two apparent tweeters in the dash but disconnecting it doesn't make a difference to the sound from it so I'm going with no for now.























Link to comment
Share on other sites
