Can anyone help me find a fuse box diagram for a 1986 Toyota Tarago van please?

I 'm having some difficulty tracking down a problem with a flat battery every morning.

With everything off there is still a current draw of 0.75 amps. However when I remove

a certain fuse (in the fuse box its on the top row, second from the right end) that

current draw reduces considerably.

If I can find out which circuit that fuse protects i'll have a better chance of rectifying

the fault.

Your comments would be appreciated.

Cheers,

Dan

  • 5 months later...
Posted
Can anyone help me find a fuse box diagram for a 1986 Toyota Tarago van please?

I 'm having some difficulty tracking down a problem with a flat battery every morning.

With everything off there is still a current draw of 0.75 amps. However when I remove

a certain fuse (in the fuse box its on the top row, second from the right end) that

current draw reduces considerably.

If I can find out which circuit that fuse protects i'll have a better chance of rectifying

the fault.

Your comments would be appreciated.

Could be a faulty diode in the alternator...

Jonathan

  • 2 months later...
Posted

Is it EFI or carbed?

My mum has a 4WD 87 EFI but i have the manual that suits 83-86 also.

The fuse in question is the Charge fuse.

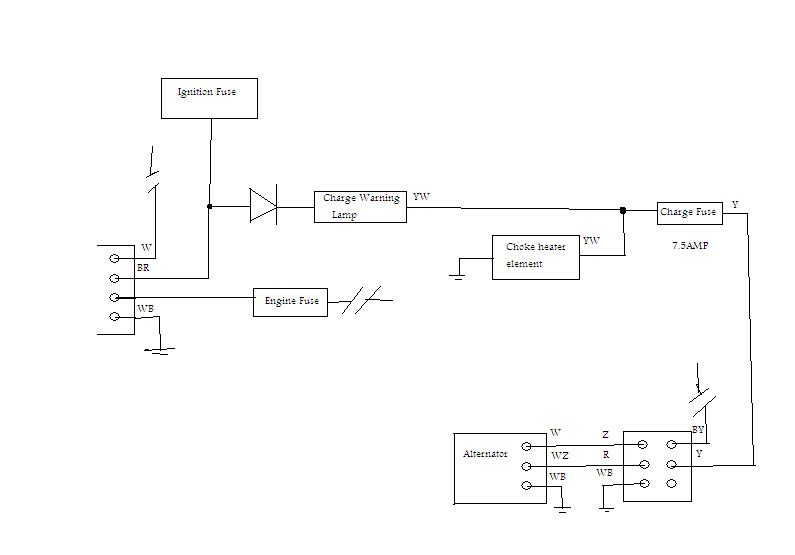

I did a mud schematic in paint hope it's helpful enough.
