DIY Compartment Courtesy Light

the-converter
 Share

Recommended Posts

the-converter Experienced

the-converter

Posted
Posted (edited)

I just fitted a LED light to my compartment tray and just wanted to show you guys how I did it.

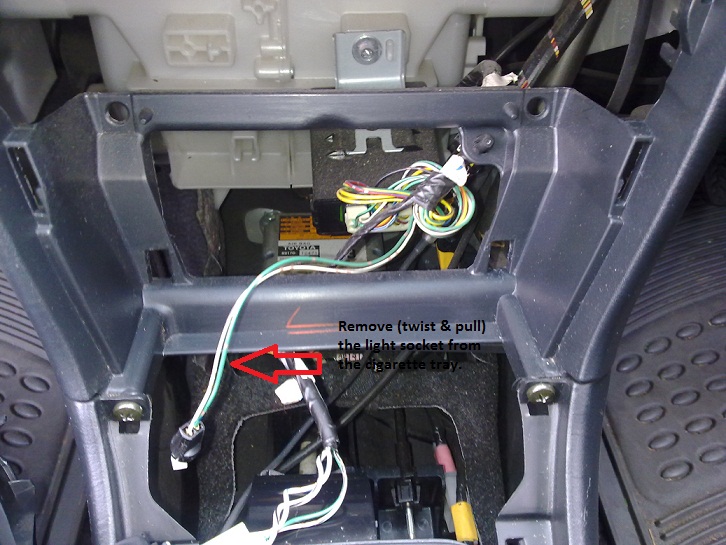

You will need to remove center control panel first to gain access to the wiring behind the panel.

Basically I used the cigarette tray light wires to power my compartment light.

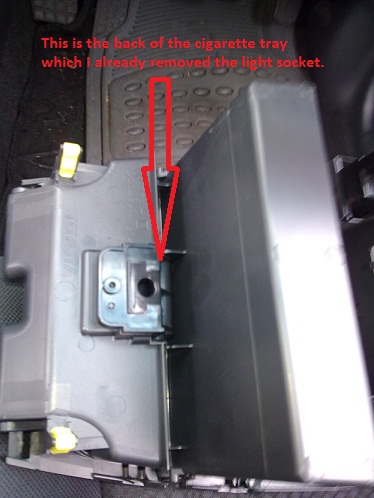

post-22906-0-51199800-1306040649_thumb.j

The green wire is positive and the white wire is negative.

post-22906-0-13135400-1306040723_thumb.j

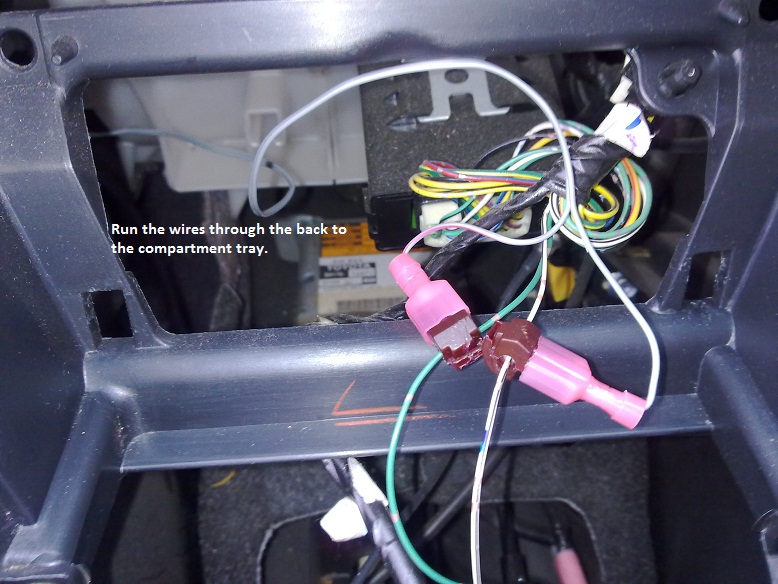

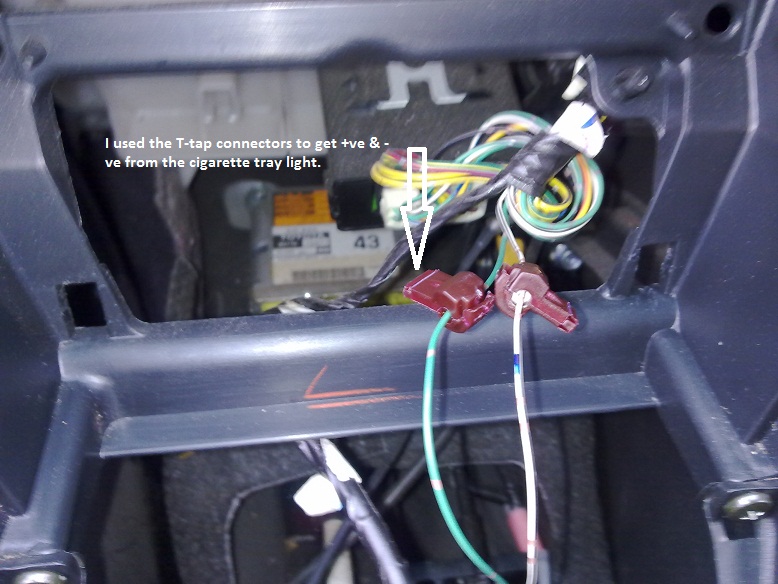

Here I used T-tap connectors to tap the wiring, you could use any other connectors.

post-22906-0-42203800-1306040753_thumb.j

post-22906-0-77827500-1306040769_thumb.j

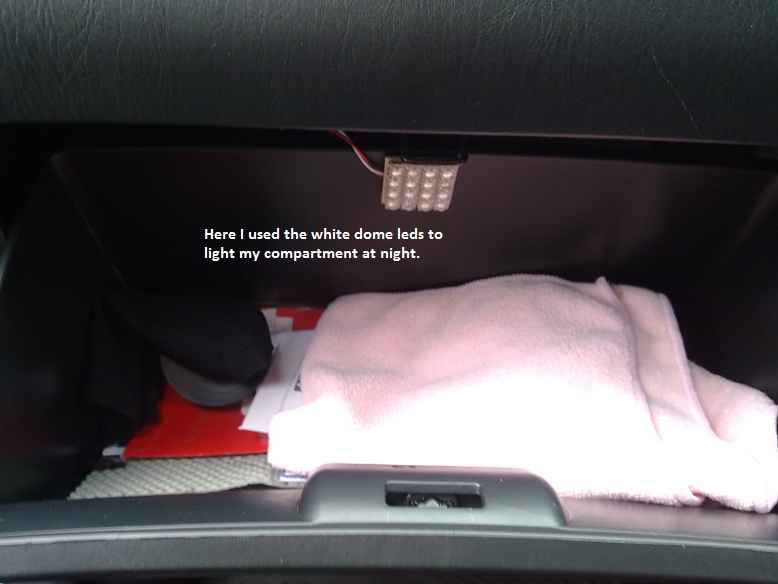

You could use the led strips but I prefer the dome led which produces brighter lights.

post-22906-0-00583800-1306040790_thumb.j

post-22906-0-86814300-1306050683_thumb.j

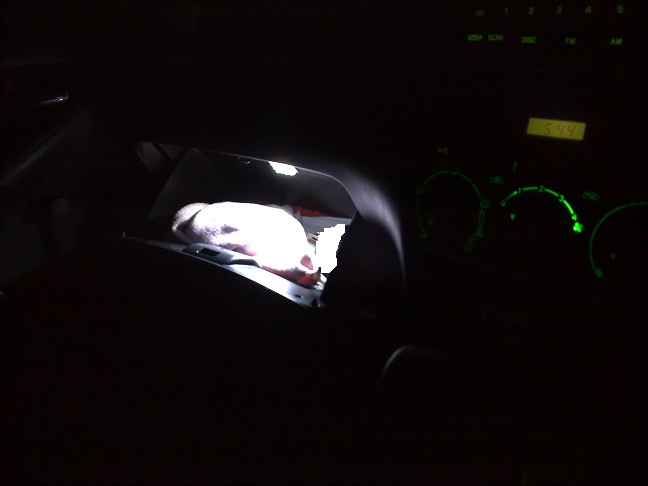

I could install a door switch when the compartment is open, the light will only on but I can't be bothered to do that because the LED is not going to draw heaps of powers.

Edited by the-converter
