Switch wires for N70 central locking

sosilboy

By sosilboy
in Hilux Club

 Share

Recommended Posts

sosilboy Advancing

sosilboy

Posted
Posted

Hey legends.

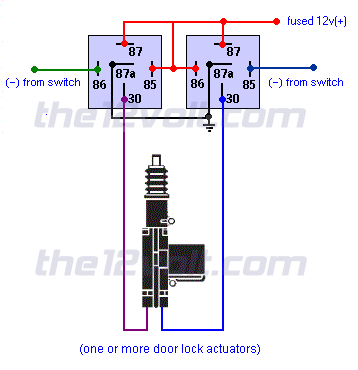

So I've got a couple of relays set up like in the attached image.

I've got a canopy with 4 actuators, waiting to be wired in.

The only wires I'm missing are the ones labelled '(-)from switch' on either end.

Does anyone know where these wires are located in a KUN26 N70?

TIA



CONROD Veteran

CONROD

Posted
Posted

Duck around and ask the question from who ever sells the brand of canopy you have, talk to the installers

sosilboy Advancing

sosilboy

Posted
  • Author
Posted
On 8/25/2022 at 6:06 PM, CONROD said:

Duck around and ask the question from who ever sells the brand of canopy you have, talk to the installers

Only problem with that is it's an imported aluminium canopy, and I'm pretty sure the business wouldn't have a clue 😅

CONROD Veteran

CONROD

Posted
Posted

You never know they might have a schematic drawing showing pick up points for electrical connections or ask them who do they use for a sparky, might be a clicked on mobile sparky, either way they should be able to provide some sort of answer especially seeing its one of their canopies


Bigpete Proficient

Bigpete

Posted
Posted

Looks like a bit of a mess with 85-87-86 all linked not your average wiring and why two relays in series
