Back Probes

Tony Prodigy

By Tony Prodigy
in Tools & Equipment

 Share

Recommended Posts

Tony Prodigy Grand Master

Tony Prodigy

Posted
Posted (edited)

I recently purchased these in the event I need to probe through the CAN Bus system for any electrical gremlins should they arise. If you know what voltages you are looking for these handy probes will make life much easier to fault find and diagnose issues. Normal multi meter probes are way to thick and cannot be used. You WILL need these little guys.

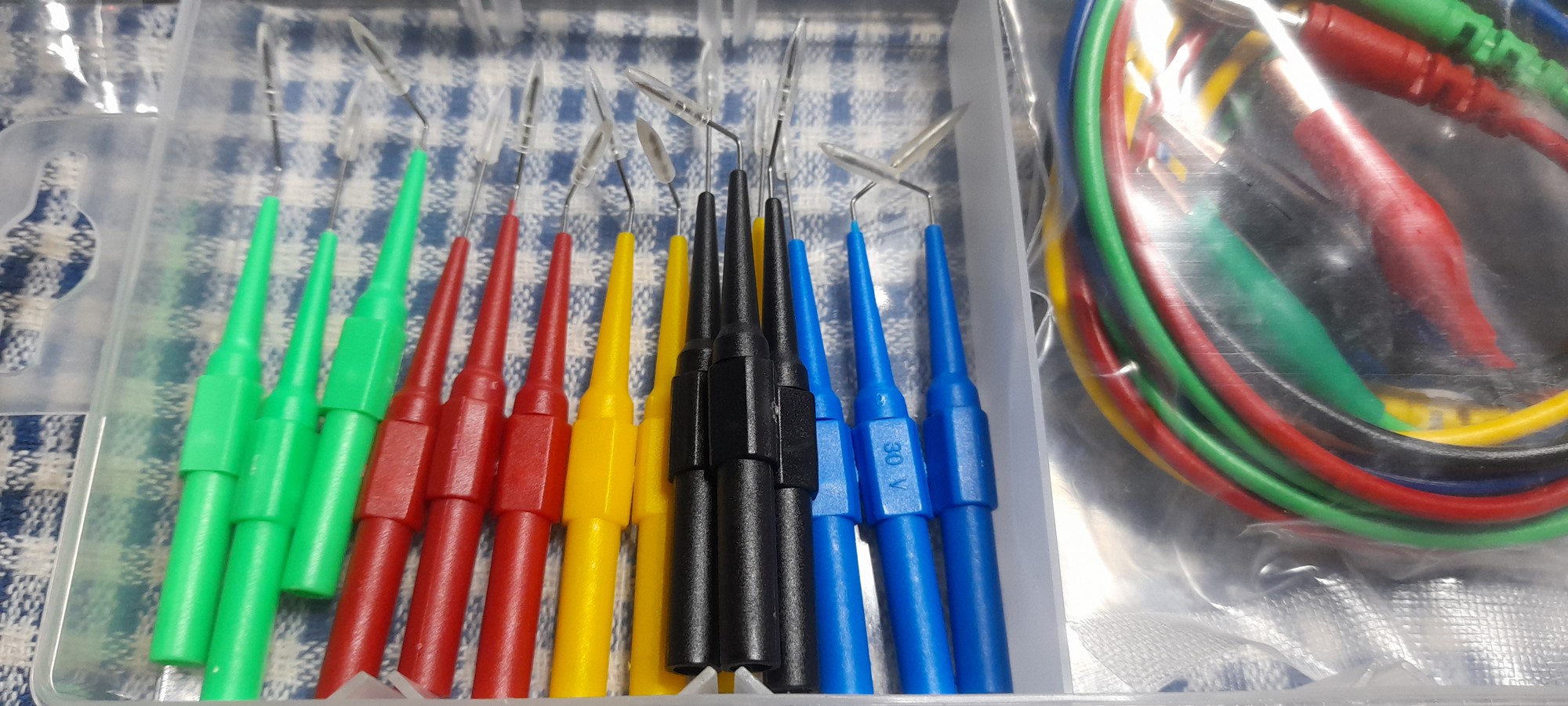

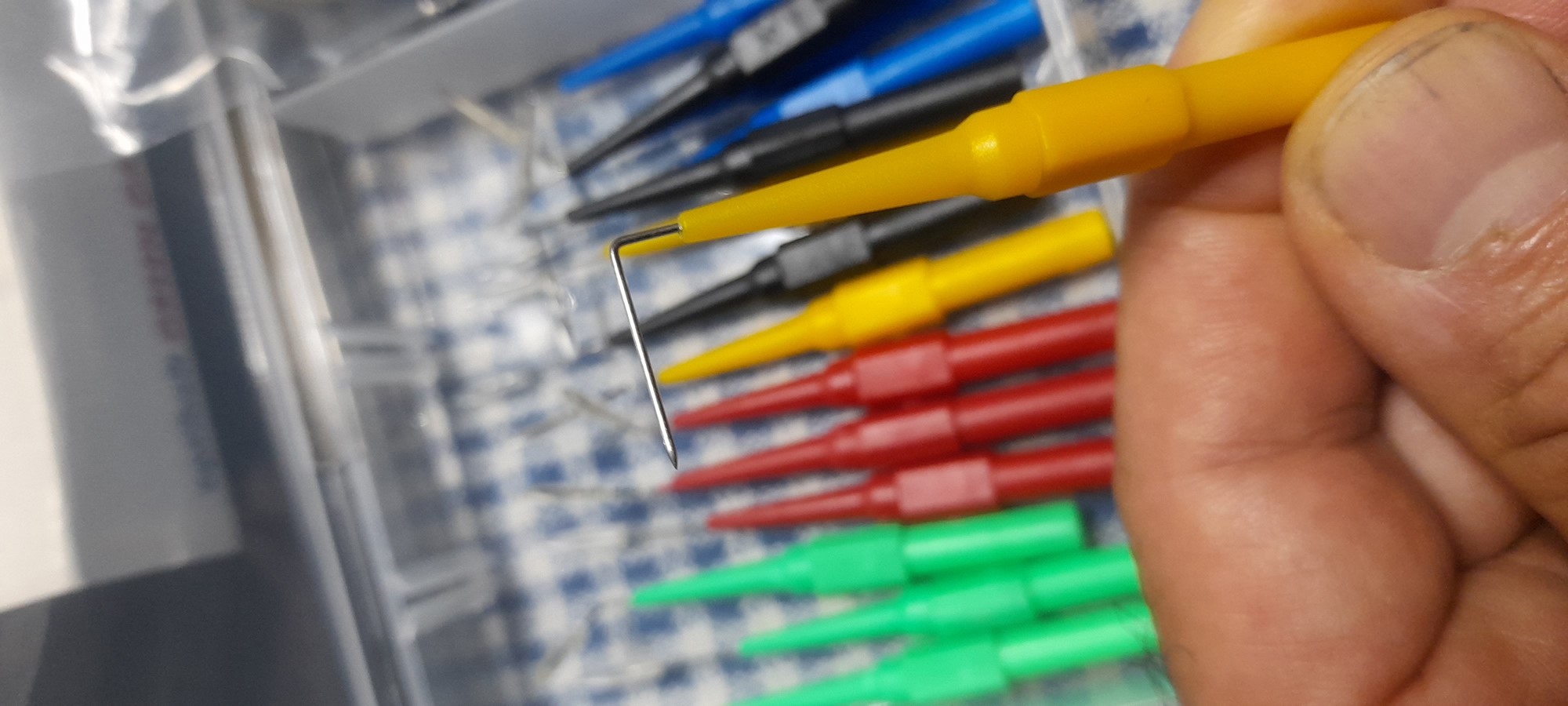

I prefer these to the pinch probes as they are not invasive. The fine tip simply slides into the pin on the socket under the rubber seal whereas the pinch probes actually cut into the wire's insulation which I do not like. It leaves a nick in the wire and the potential for contamination.

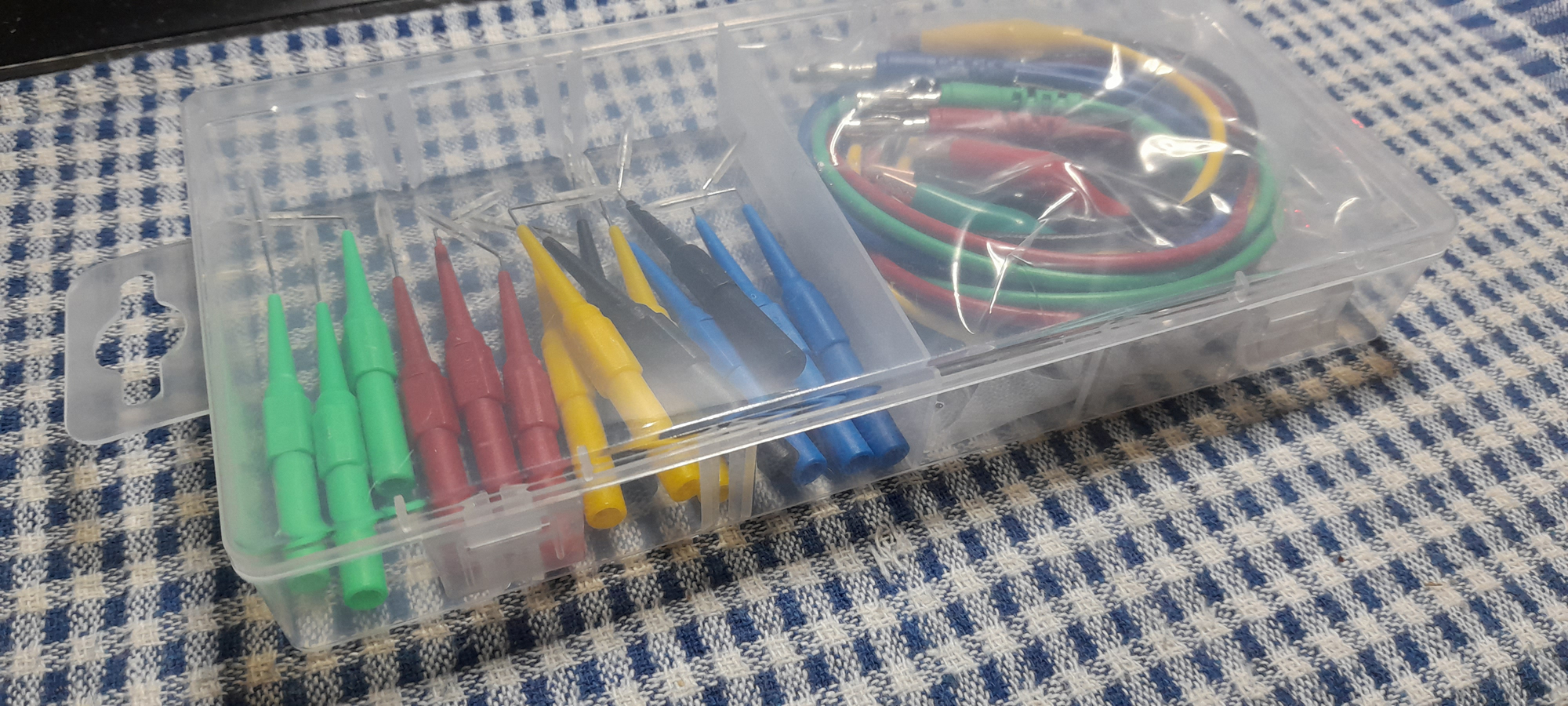

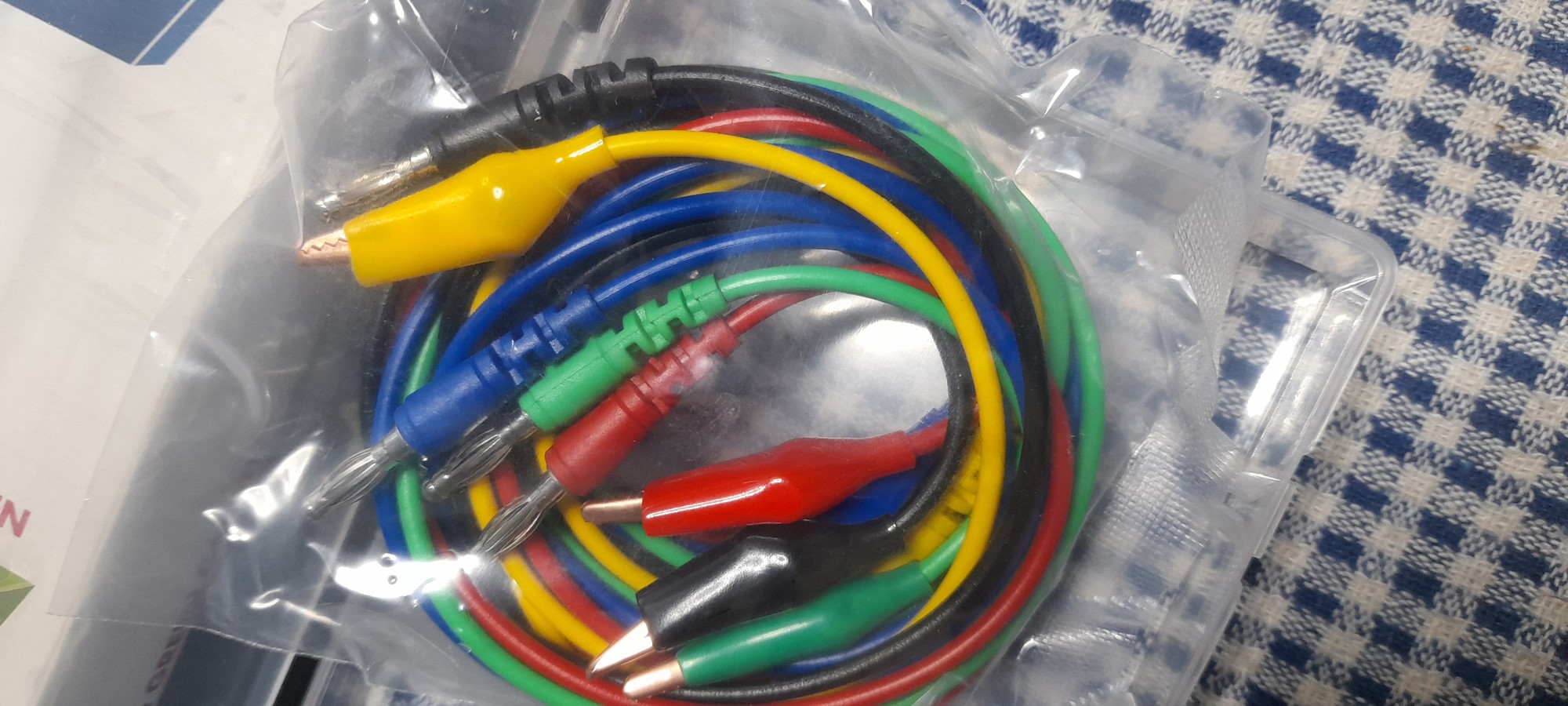

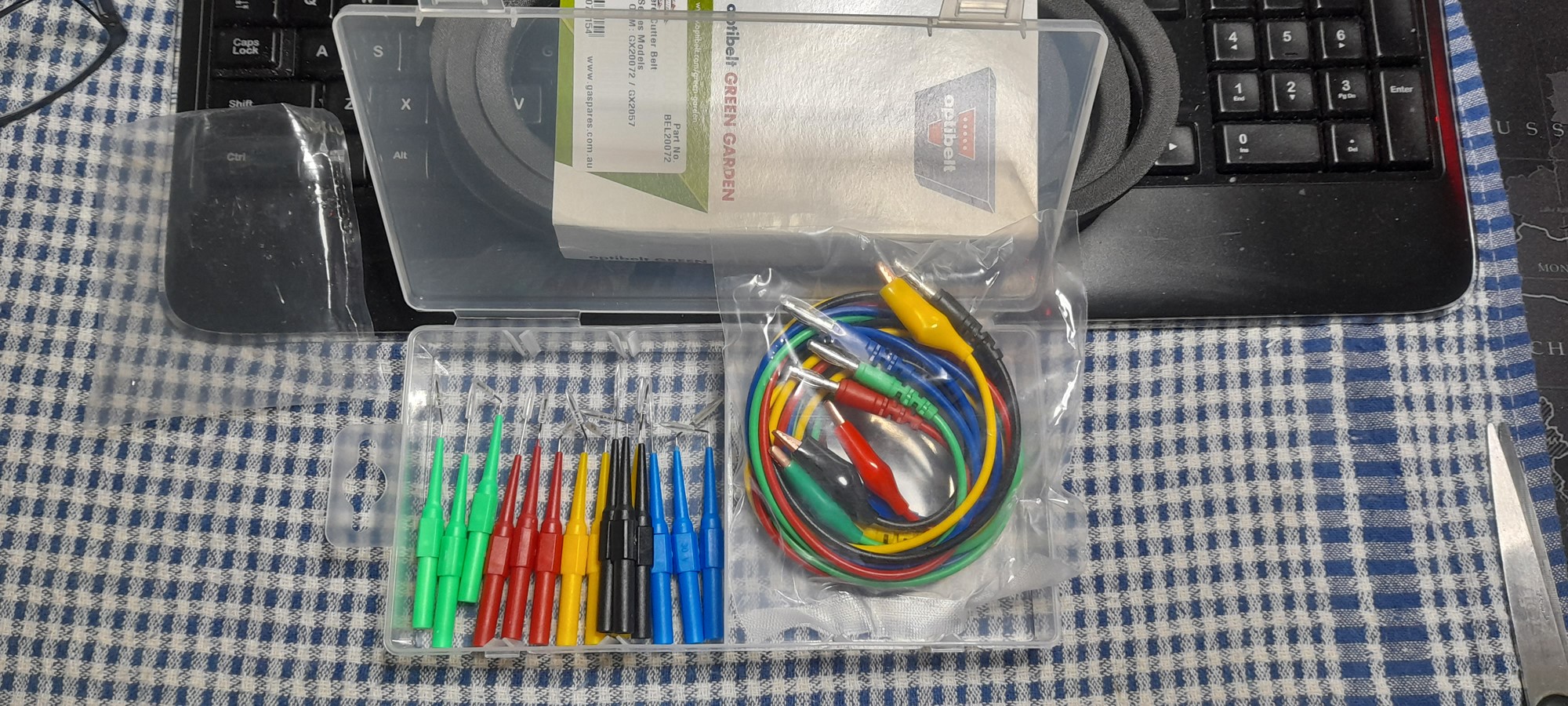

Comes in a handy kit. You can find these on Ebay of course.

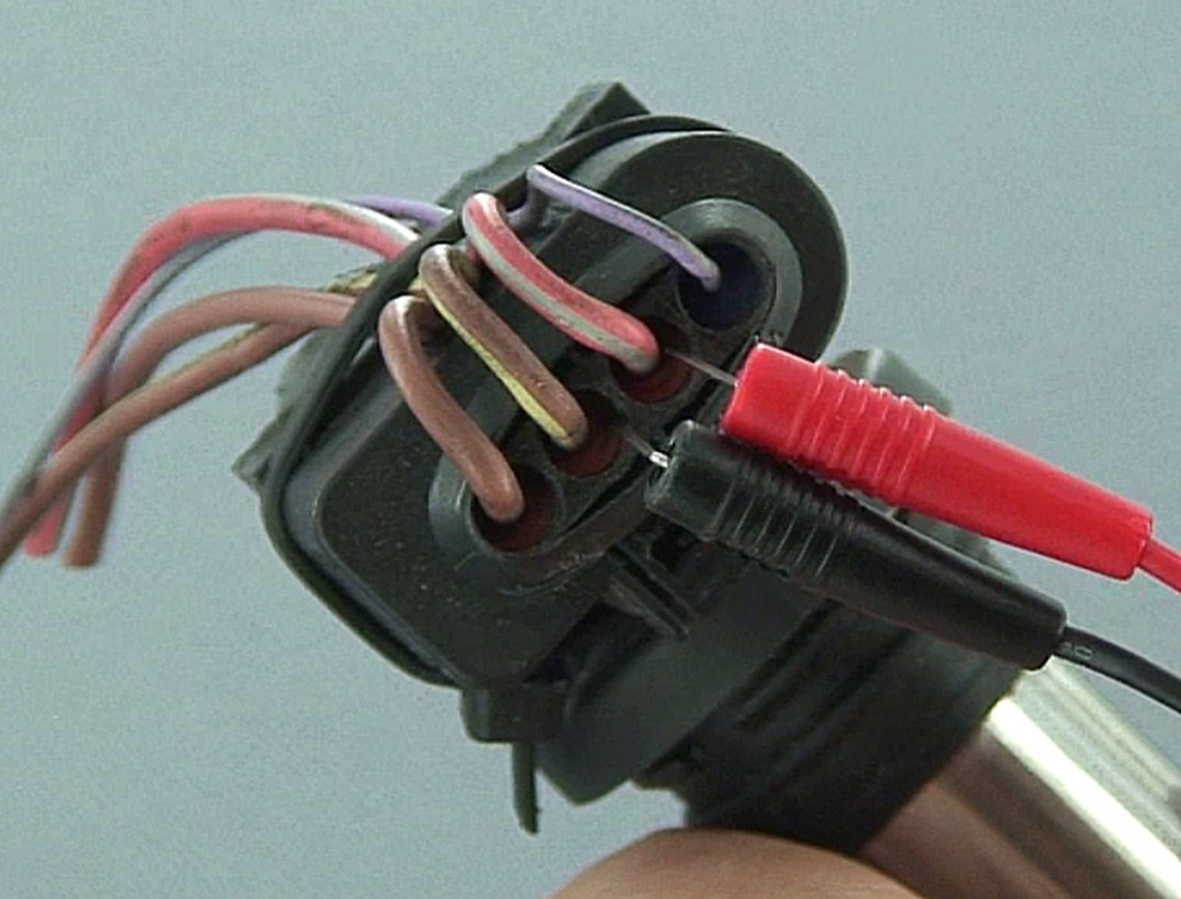

The last picture gives you an idea. Not the exact tip type but similar.







Edited by Tony Prodigy
  • Like 1

KAA Grand Master

KAA

Posted
Posted

Think we will have to rename you to Gadget Man Tony...LOL, they certainly look brilliant thanks for the post and Pic's mate

KAA

  • Thanks 1
