GREDDY OIL BLOCK/SENSOR ADAPTER

pirate125
 Share

Recommended Posts

pirate125 Proficient

pirate125

Posted
Posted

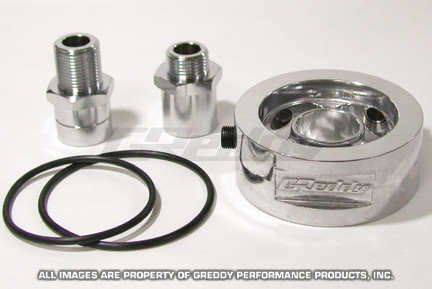

I own a 2001 Toyota Runx w/ 2ZZ-GE engine and I recently purchased a Greddy oil block/sensor adapter which can be seen below:


I intend to install an Autometer oil pressure guage w/ corresponding sending unit and I would like to know if anyone here who has a similar product installed on their vehicle has had any issues with mounting the sending unit directly to the oil block/sensor adapter. The sending unit has 1/8" NPT threads and two(2) of the outlets on the oil block/sensor adapter have 1/8" NPT threads.

Additionally, if any of you have the sending unit mounted anywhere else other than the oil block/sensor adapter you can let me know as well as posting any pictures of the set-up.

Thanks in advance.
Northy Grand Master

Northy

Posted
Posted

i have the same block on my car with an oil temp and oil pressure sensors mounted straight into the block with no issues
