Air Filter Replacement

[lemsta]

Hi,

I'm hoping someone out there could do me a favor and take a couple of photos of their air intake housing and/or answer questions..

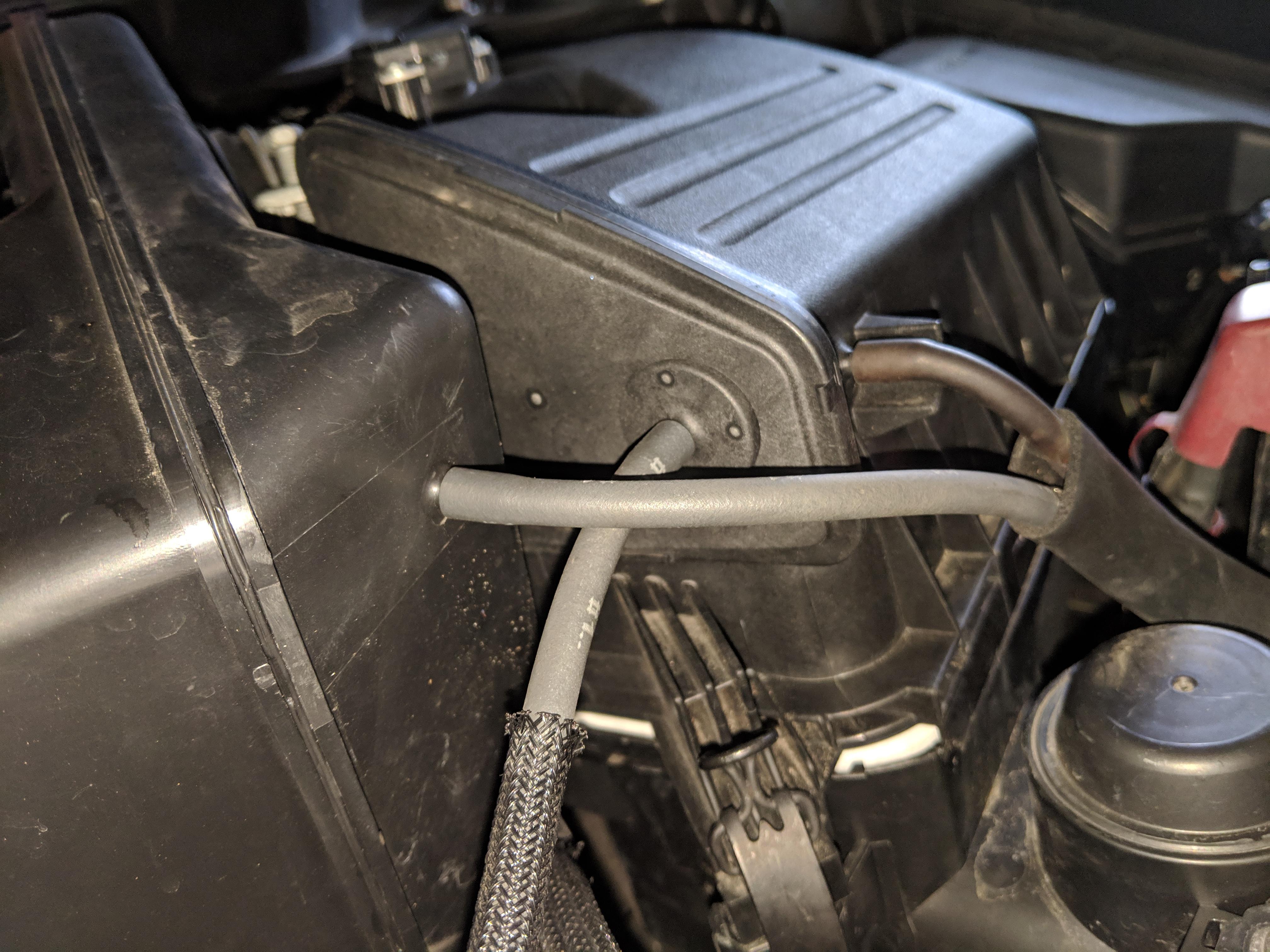

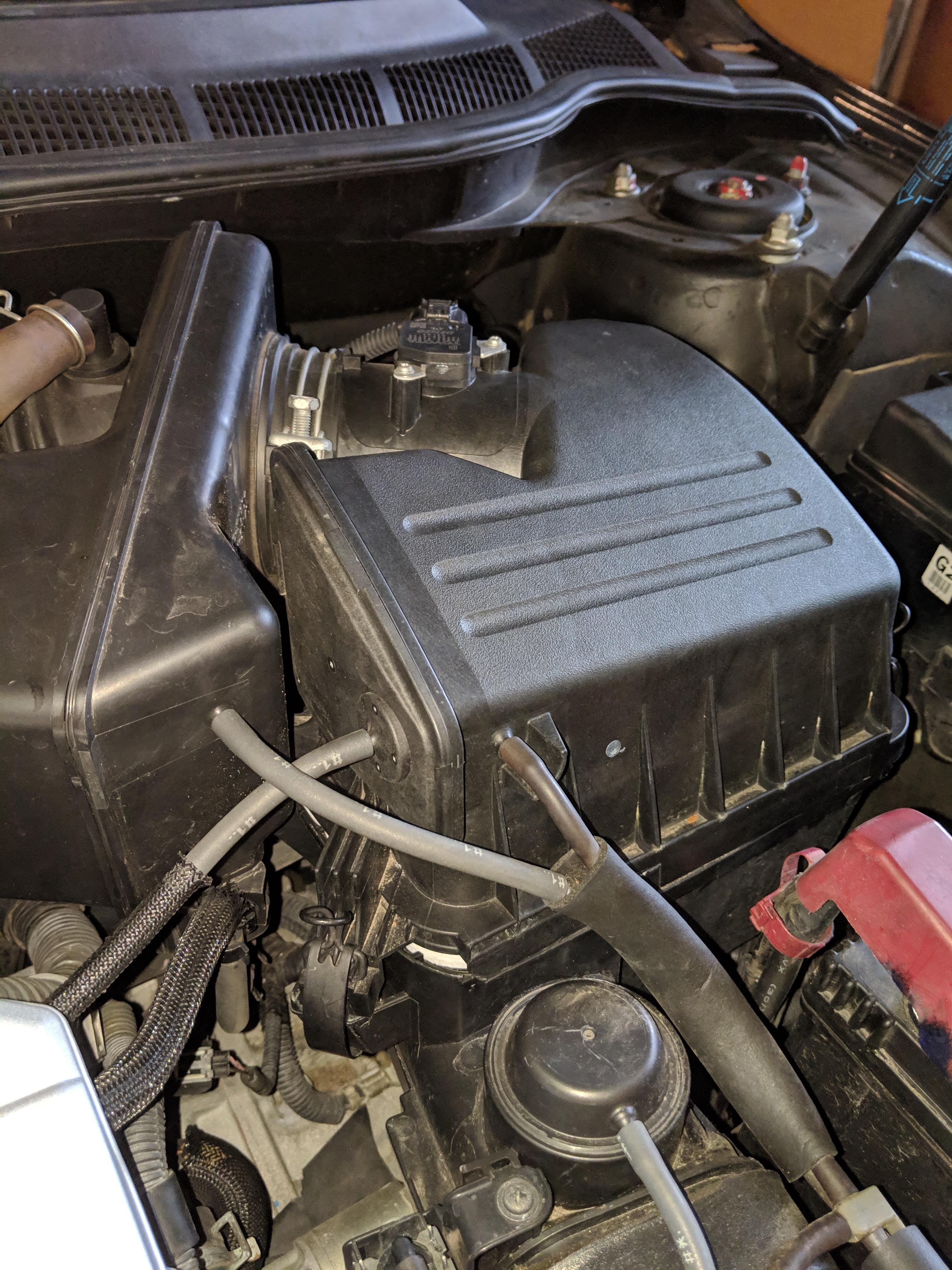

I've just replaced my air filter and stupidly I didn't take any pictures first so I'm not sure if I've not closed the top properly. Basically, the air filter is visible in one of the corners and along the side closest to the engine. I've attached photos illustrating what I'm referring to.

Can anyone confirm if this is correct/expected, or whether I've screwed up and not done it up properly ? The clamps all appear tight.



Regards,

Michael



EDIT: Just to confirm, this is for an 07 Aurion SX6 (although I believe any of the 06-11 Aurions would be the same).







Edited December 29, 2018 by lemsta

[LordBug]

07 Sportivo, same thing, filter shows.
Odd design, but it's water tight so I'm not overly fussed 🙂

[nushydude]

I think you're fine. This is my 2007 AT-X.

https://i.imgur.com/XW6ZWkR.jpg

[lemsta]

Thank you both.
