Specilized32 & I installed mesh grills facelift STIVOs weekend.

Have a look here

http://www.imagestation.com/album/pictures...l?id=2105147152

Its pretty easy to do.

We bought 2 sections of mesh from Autobarn ($30). Specialzed got Black mesh and I got Silver mesh. Bought a glue gun ($17) n some glue sticks ($2) and a set of staight cut tin snips ($16).

Here is the procedure

1.Take off the bumpers (3-5 minute job).

2.Unclip the black inserts in the grills.

3.Mark out the mesh n cut to a size larger than the hole.

4.You will notice that these tabs stick out so will need to cut hole in the mesh to fit em in (you could also grind off the tabs but we didn't).

5.Install the mesh n wrap around the edges.

6.Put daps off glue between the mesh n the bumper.

7.If you have a black car you dont have a prob, but with silver you could see the tabs, so specialized32 used a touch up pen and painted the tabs black.

9.Put the bumper back on.

10.Enjoy your new grills.

Edited by ZAV
KaZe- Grand Master

KaZe-

Posted
Posted

man thats tough yo!!! i like it ^^ but i dont knoe if i want it lolzzz

Cheers for that man


Saiya Grand Master

Saiya

Posted
Posted

That mod looks really sweeeeet! But im too scared of taking off my front bumper man the car looks so vulnerable when its taken off.

BigBum Grand Master

BigBum

Posted
Posted

Looks great mate. Would have to judge it in person though ;)

Btw, might wanna keep your sig down to a max of 6 lines. They're the rules :)

MT Grand Master

MT

Posted
Posted

Custom black headlight surrounds gotta be one of the best visual mods :lol:

Black headlight surrounds - How'd you do it? was it hard?

here

this is pinned at the top of the INSIDE AND OUT forum... Zav has already done it for u!

ZAV Mentor

ZAV

Posted
  • Author
Posted

Looks great mate. Would have to judge it in person though ;)

Btw, might wanna keep your sig down to a max of 6 lines. They're the rules :)

Sig shortened!!!!

CORZZA Grand Master

CORZZA

Posted
Posted

Exactly the plans i have! looks good!

how easy is it to take the bumper off?

ZAV Mentor

ZAV

Posted
  • Author
Posted

Exactly the plans i have! looks good!

how easy is it to take the bumper off?

Very Easy, even specialized32 can do it himself (no offence).

gOODbOYz Grand Master

gOODbOYz

Posted
Posted

Top stuff guys..

should of just changed the bottom grill and left the top ..

other peeps would of thought its a cooler :lol:

  • 5 weeks later...
CORZZA Grand Master

CORZZA

Posted
Posted

please put the pics up!

Ppl want to see

  • 4 months later...
  • 6 months later...
magic Experienced

magic

Posted
Posted

anyone got this pic saved ?? cause the link provided is dead. thanks i would really like to see this mod !!!

evoke Proficient

evoke

Posted
Posted
anyone got this pic saved ?? cause the link provided is dead. thanks i would really like to see this mod !!!

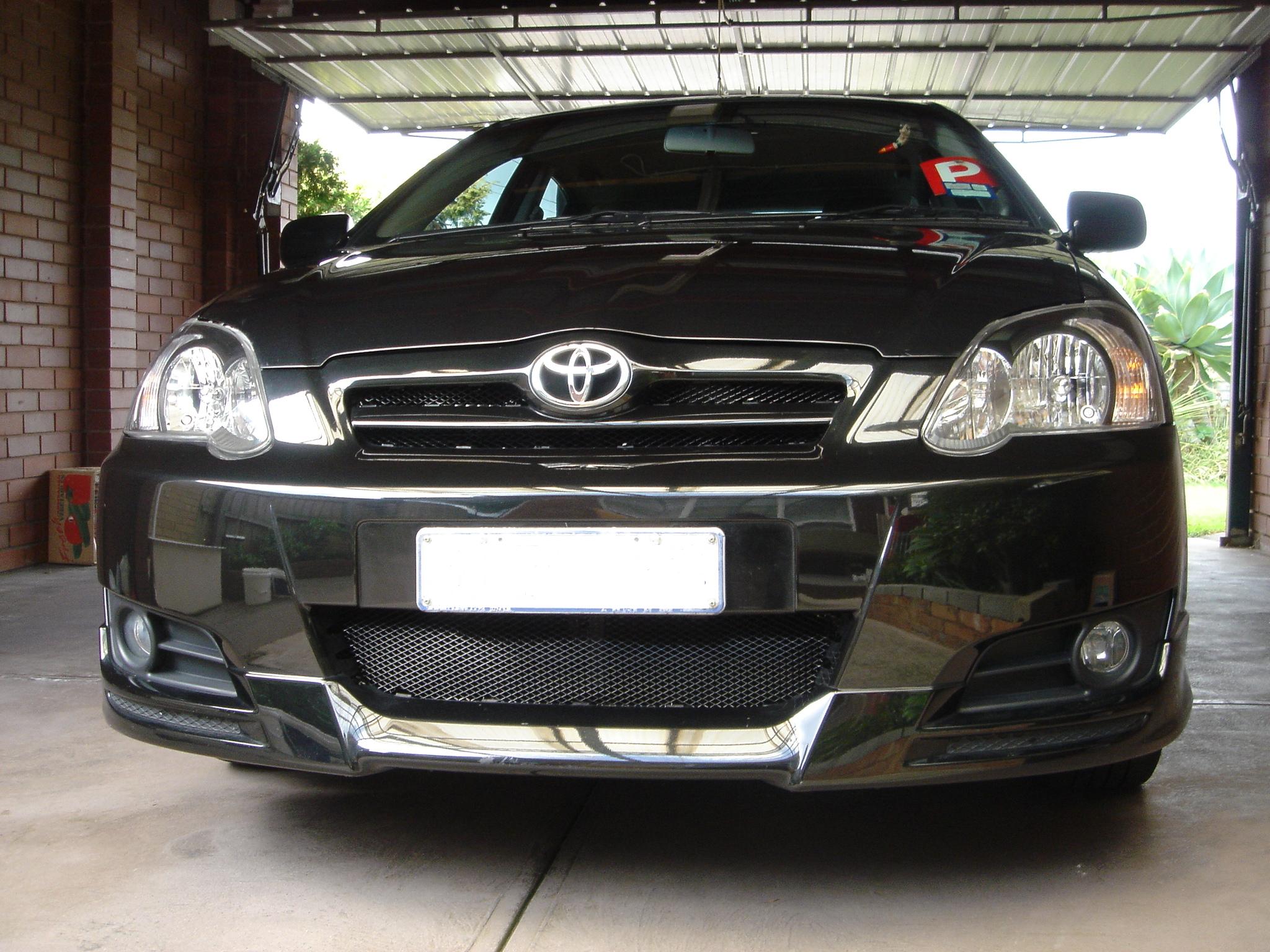

Hey, some of the members on the forum helped me with this DIY mod last night. Turned out great! THANK YOU! :yahoo:

They know who they are :whistling: , much appreciated for the time they took out of their schedule. I took this photo this afternoon, hope it helps.


oVo Veteran

oVo

Posted
Posted
anyone got this pic saved ?? cause the link provided is dead. thanks i would really like to see this mod !!!

Hey, some of the members on the forum helped me with this DIY mod last night. Turned out great! THANK YOU! :yahoo:

They know who they are :whistling: , much appreciated for the time they took out of their schedule. I took this photo this afternoon, hope it helps.


Dude...where's the eyelids!! :spiteful:

Props to the gentleman that did this...n also props to the godfather of the idea! :toast:
